Product CatalogPart Number
MYC0409-NA
Manufacturer
Murata Power Solutions Inc.Description
DC/DC 48V IN LGA
Datasheet
DatasheetPackage
52-LGA Module
In Stock
43,271 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

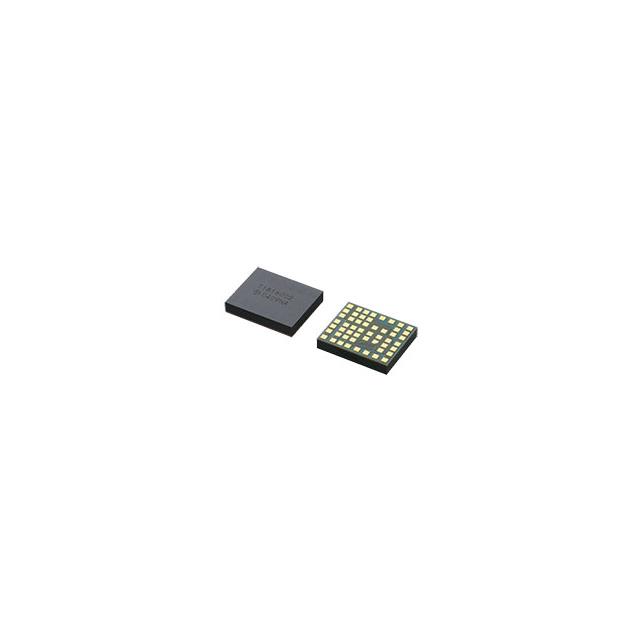

MYC0409-NA
MYC0409-NA
lmages are for reference only.Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 5 ~ 15V 6A 20V - 60V Input
Quick Inquiry
MYC0409-NA
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MYC0409 (72W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 5 ~ 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 72 W |
| Applications | ITE (Commercial) |
| Features | Load Sharing, Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 52-LGA Module |
| Size / Dimension | 0.45" L x 0.37" W x 0.08" H (11.5mm x 9.5mm x 2.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MYC0409-NA-D | 4AA12-P4-25PPM-M-E | PQC30-48-S15-O | 2AA24-P20 |
| Manufacturer | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC 48V IN LGA | DC/DC CONVERTER | DC-DC ISOLATED, 30 W, 36~75 VDC | AA-SERIES DC TO HVDC CONVERTER, |
| Series | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tray | Bulk |
