Product CatalogPart Number
MYH682K300D11
Manufacturer
Cornell Dubilier KnowlesDescription
CAP FILM 6800PF 10% 1.5KVDC RAD
Datasheet
DatasheetPackage
Radial
In Stock
73,860 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MYH682K300D11
MYH682K300D11

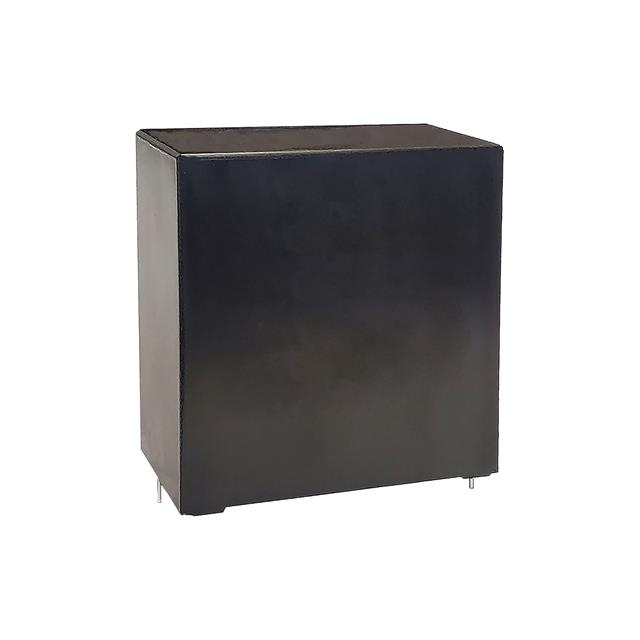

lmages are for reference only.Payment Methods
Delivery Services
6800 pF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Quick Inquiry
MYH682K300D11
Specifications
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | MYH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6800 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, Y2 |
| Features | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | MYH |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | MYH682K300D11 | MYH682K300E10 | MYH102K300D16 | MYH103K300D11 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 6800PF 10% 1.5KVDC RAD | CAP FILM 6800PF 10% 1.5KVDC RAD | CAP FILM 1000PF 10% 1.5KVDC RAD | CAP FILM 10000PF 10% 1.5KVDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
