N15TV-104A3030
lmages are for reference only.N15TV-104A3030
TRIMMER 100KOHM 0.15W PC PIN TOP
Datasheet-
45,161 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
N15TV-104A3030
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | N-15 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 100 kOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±30% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Square - 0.591" x 0.591" Face (15.00mm x 15.00mm) |
| Base Product Number | N15TV-104 |
| Product Attribute |  |
 |
 |
 |

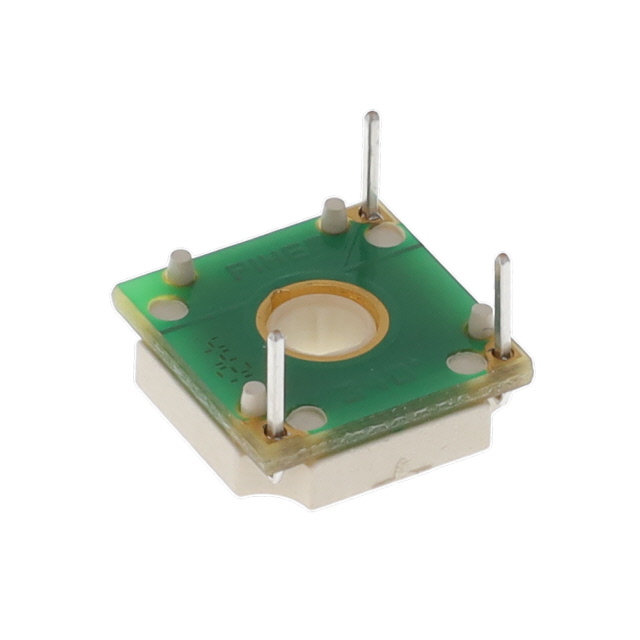

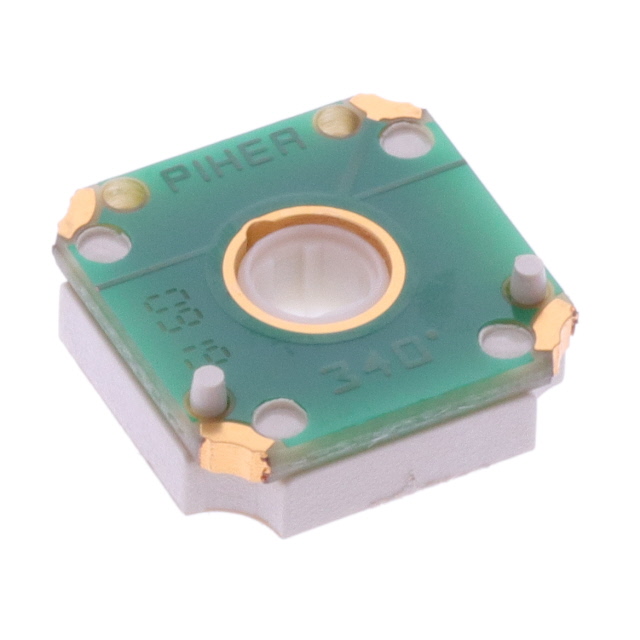

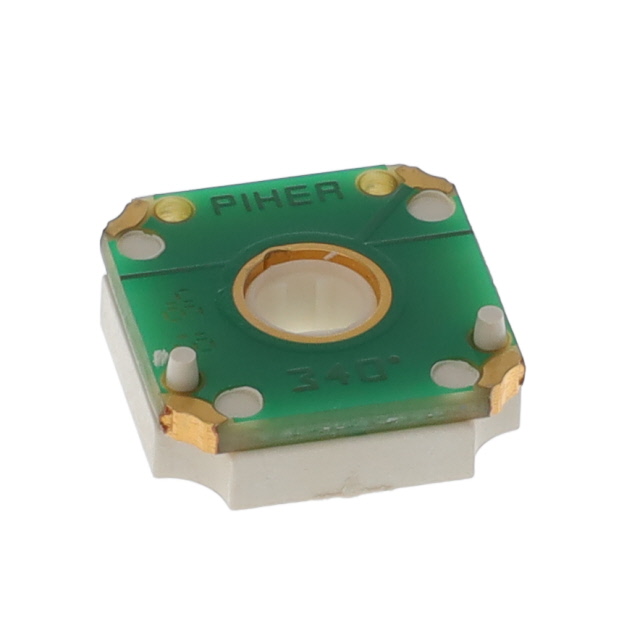

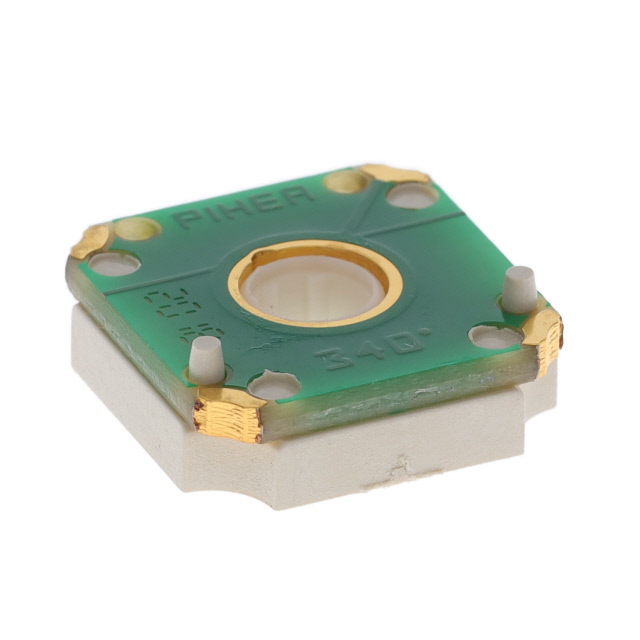

| Part Number | N15TV-103A3030 | N15TS-103A3030 | N15TS-104A3030 | N15TS-502A3030 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 10K OHM 0.15W PC PIN TOP | TRIMMER 10K OHM 0.15W J LEAD TOP | TRIMMER 100KOHM 0.15W J LEAD TOP | TRIMMER 5K OHM 0.15W J LEAD TOP |
| Series | N-15 | N-15 | N-15 | N-15 |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
