Product CatalogPart Number
NC2EBD-DC5V
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE DPDT 5A 5V
Datasheet
DatasheetPackage
-
In Stock
16,446 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NC2EBD-DC5V
NC2EBD-DC5V
lmages are for reference only.Payment Methods
Delivery Services

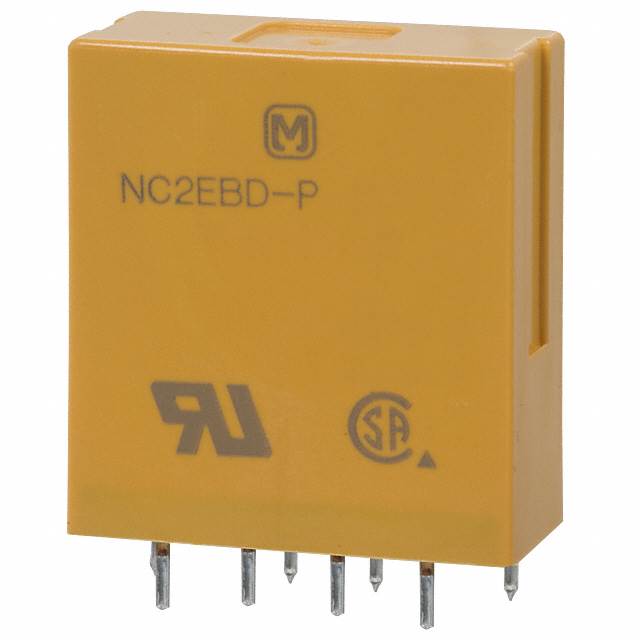

General Purpose Relay DPDT (2 Form C) 5VDC Coil Socketable
Quick Inquiry
NC2EBD-DC5V
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | NC |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 1250VA |
| Coil Current | 72 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 69.4 Ohms |
| Base Product Number | NC2EB |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | NC2EBD-DC12V | NC2EBD-DC24V | NC2EBD-DC48V | NC2EBD-DC6V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE DPDT 5A 12V | RELAY GEN PURPOSE DPDT 5A 24V | RELAY GEN PURPOSE DPDT 5A 48V | RELAY GEN PURPOSE DPDT 5A 6V |
| Series | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Packaging | Tube | Tube | Box | Tube |
