NC7SZ02M5

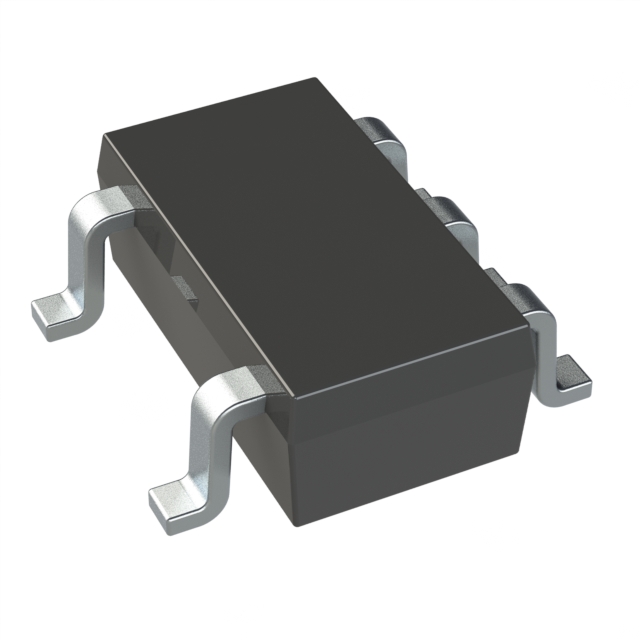

lmages are for reference only.NC7SZ02M5
IC GATE NOR 1CH 2-INP SOT23-5
DatasheetSC-74A, SOT-753
78,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NOR Gate IC 1 Channel SOT-23-5
NC7SZ02M5
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Fairchild Semiconductor |
| Series | 7SZ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 7SZ02 |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | - |
| Input Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | NC7SZ02M5 | NC7SZ02M5X | NC7SZ02M5X-L22090 | NC7SZ00FHX |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC GATE NOR 1CH 2-INP SOT23-5 | IC GATE NOR 1CH 2-INP SOT23-5 | IC GATE NOR 1CH 2-INP SOT23-5 | IC GATE NAND 1CH 2-INP 6MICROPK2 |
| Series | 7SZ | 7SZ | 7SZ | 7SZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
