NCM6S4803EC

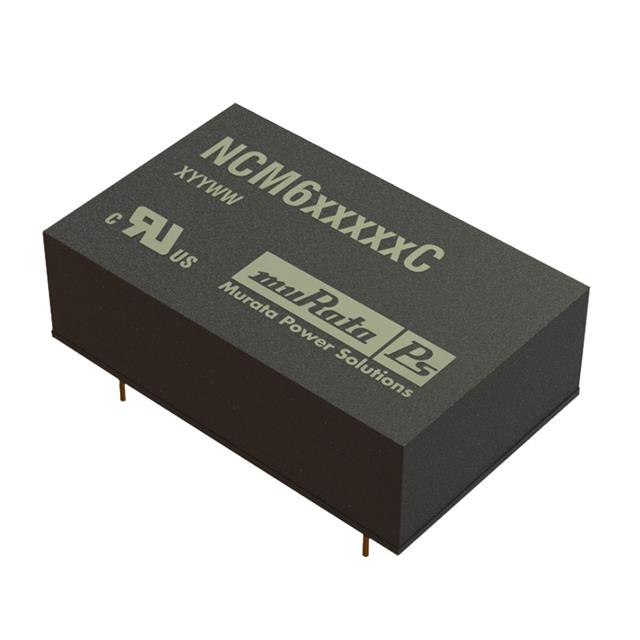

lmages are for reference only.NCM6S4803EC
DC DC CONVERTER 3.3V 6W
Datasheet24-DIP Module, 7 Leads
53,426 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 1.52A 18V - 75V Input
NCM6S4803EC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | NCM6 (6W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.52A |
| Power (Watts) | 6 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 7 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | NCM6S |
| Voltage - Isolation | 5.2 kV |
| Product Attribute |  |
 |
 |
|
| Part Number | NCM6S4803C | NCM6S4805C | NCM6S4805EC | NCM6S4805EC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 6W | DC DC CONVERTER 5V 6W | DC DC CONVERTER 5V 6W | DC DC CONVERTER 5V 6W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
