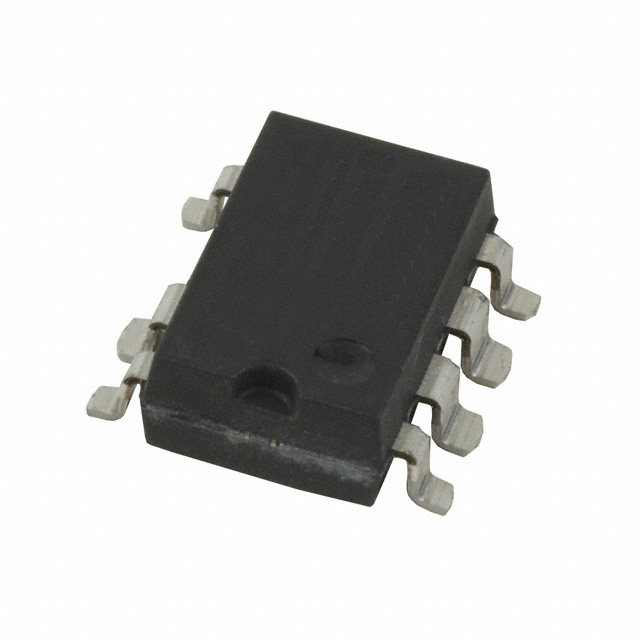

NCP1011APL065R2G
lmages are for reference only.Payment Methods
Delivery Services
Converter Offline Flyback Topology 65kHz 7-PDIP, Gullwing
NCP1011APL065R2G
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 10V |
| Duty Cycle | 67% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 19 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | 7-PDIP, Gullwing |
| Mounting Type | Surface Mount |
| Base Product Number | NCP1011 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCP1011APL130R2G | NCP1010AP065 | NCP1010AP065G | NCP1010AP100 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | IC OFFLINE SWITCH FLYBACK 7DIPGW | IC OFFLINE SWITCH FLYBACK 7DIP | IC OFFLINE SWITCH FLYBACK 7DIP | IC OFFLINE SWITCH FLYBACK 7DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
