Converter Offline Flyback Topology 100kHz 7-PDIP

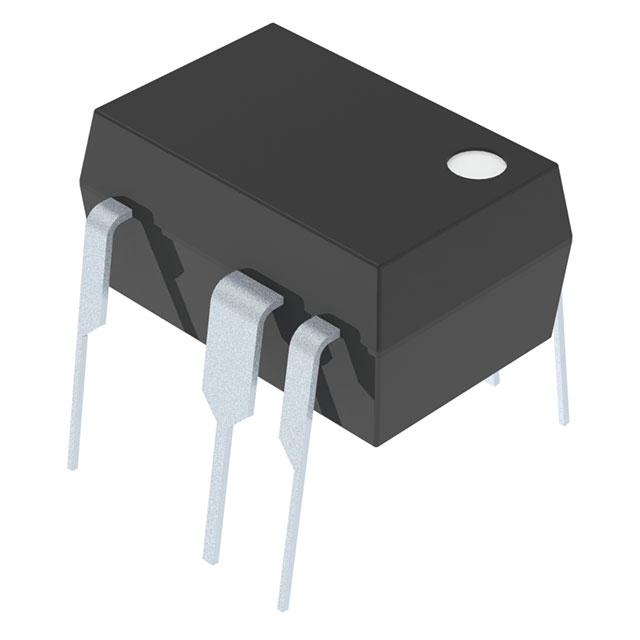

NCP1054P100
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 10V |
| Duty Cycle | 77% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 40 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
| Mounting Type | Through Hole |
| Base Product Number | NCP1054 |
| Voltage - Start Up | 8.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCP1054P100G | NCP1000P | NCP1000PG | NCP1000T |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC OFFLINE SWITCH FLYBACK 7DIP | IC OFFLINE SWITCH MULT TOP 8DIP | IC OFFLINE SWITCH MULT TOP 8DIP | IC REG LIN SWITCHING VOLT MODE |
| Series | - | - | - | * |
| Packaging | Tube | Tube | Tube | Bulk |
