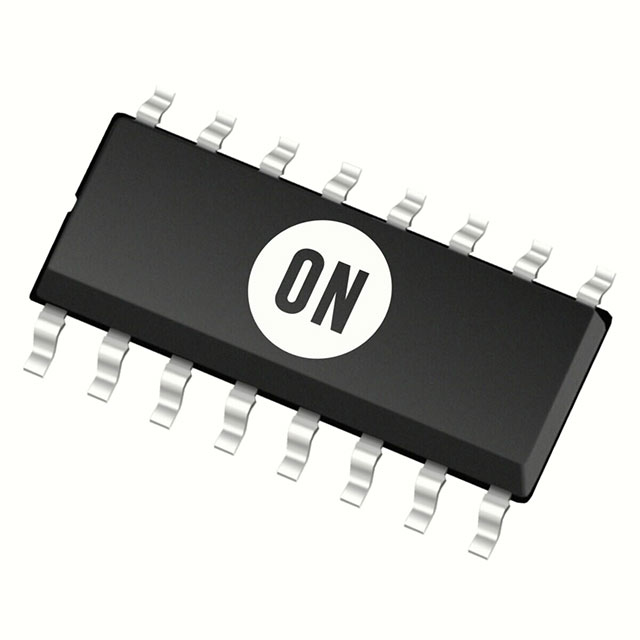

Converter Offline Half-Bridge Topology 20kHz ~ 750kHz 16-SOIC
NCP13992ADDR2G
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 600V |
| Topology | Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 50% |
| Frequency - Switching | 20kHz ~ 750kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | NCP13992 |
| Voltage - Start Up | 15.8 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCP13992AADR2G | NCP13992ABDR2G | NCP13992ACDR2G | NCP13992AEDR2G |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC OFFLINE SW HALF-BRDG 16SOIC | IC OFFLINE SW HALF-BRDG 16SOIC | IC OFFLINE SW HALF-BRDG 16SOIC | IC OFFLINE SW HALF-BRDG 16SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
