NCP5662DS15R4G
lmages are for reference only.Payment Methods
Delivery Services

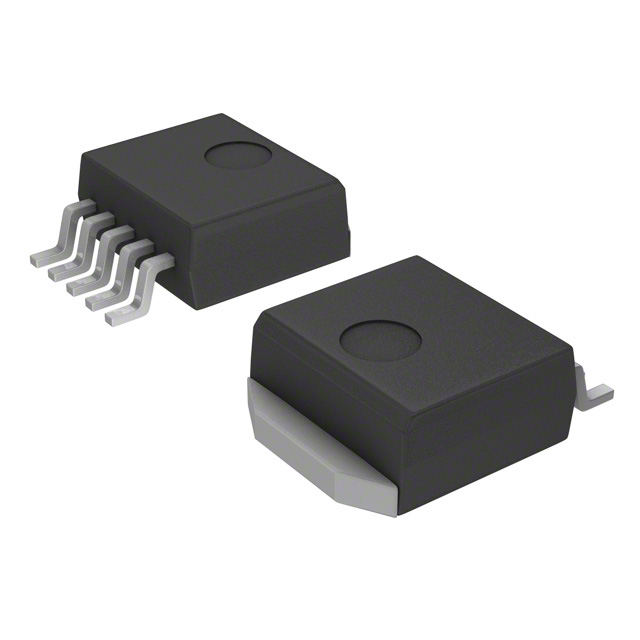

Linear Voltage Regulator IC Positive Fixed 1 Output 2A D2PAK-5
NCP5662DS15R4G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 9V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 3 mA |
| PSRR | 70dB ~ 65dB (120Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | D2PAK-5 |
| Base Product Number | NCP5662 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCP5662DS12R4G | NCP5662DS18R4G | NCP5662DS25R4G | NCP5662DS28R4G |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.2V 2A D2PAK-5 | IC REG LINEAR 1.8V 2A D2PAK-5 | IC REG LINEAR 2.5V 2A D2PAK-5 | IC REG LINEAR 2.8V 2A D2PAK-5 |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
