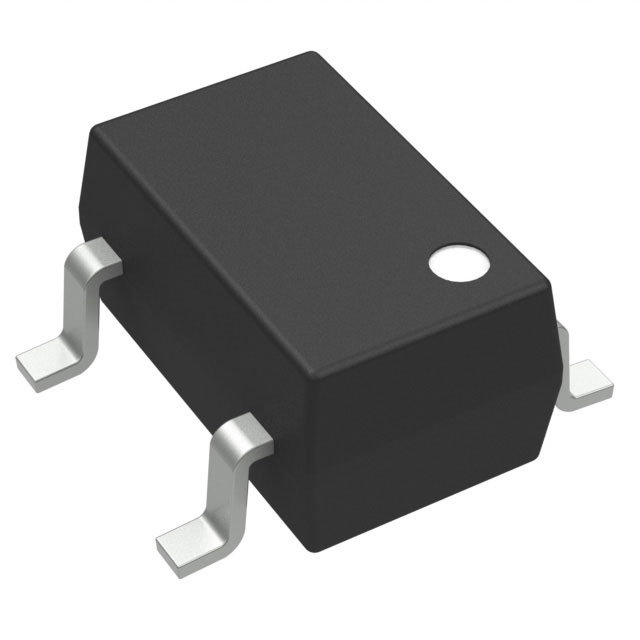

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-TSOP
NCV8560SN180T1G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 175 µA |
| PSRR | 62dB ~ 38dB (120Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| Base Product Number | NCV8560 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NCV8560SN180T1G-22523Z | NCV8560SN130T1G | NCV8560SN150T1G | NCV8560SN250T1G |
| Manufacturer | Flip Electronics | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LDO Voltage Regulator Positive 1 | IC REG LINEAR 1.3V 150MA 5TSOP | IC REG LINEAR 1.5V 150MA 5TSOP | IC REG LINEAR 2.5V 150MA 5TSOP |
| Series | Flip Electronics | onsemi | onsemi | onsemi |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
