Product CatalogPart Number
NDFC16H
Manufacturer
NKK SwitchesDescription
SW ROTARY DIP HEX COMP 0.1A 5V
Datasheet
DatasheetPackage
-
In Stock
85,896 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NDFC16H
NDFC16H

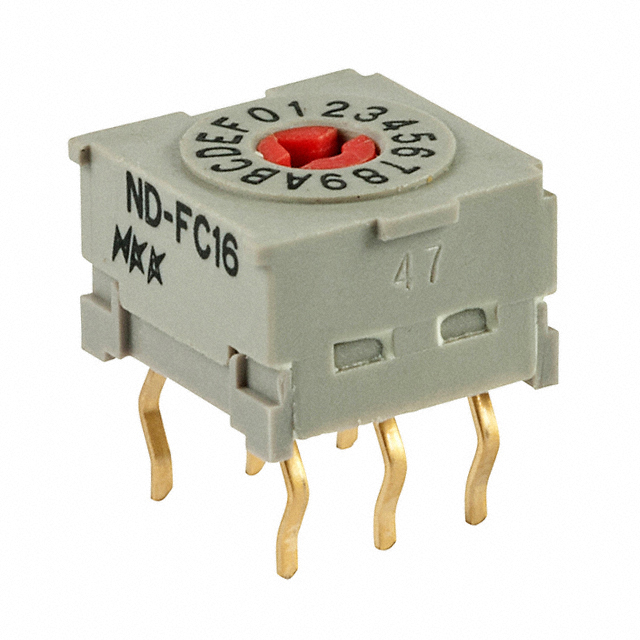

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch Hexadecimal Complement 16 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 5VDC
Quick Inquiry
NDFC16H
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | NKK Switches |
| Series | ND |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Circuit | Hexadecimal Complement |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.312" (7.92mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Process Sealed |
| Operating Temperature | -25°C ~ 75°C |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Length | 0.331" (8.41mm) |
| Mechanical Life | 20,000 Steps |
| Electrical Life | 20,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | NDFC10H | NDFC10P | NDFC16P | NDIR08H |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | APEM Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SW ROTARY DIP BCD COMP 0.1A 5V | SW ROTARY DIP BCD COMP 0.1A 5V | SW ROTARY DIP HEX COMP 0.1A 5V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | ND | ND | ND | NDI |
| Packaging | Box | Tray | Tray | Tube |
