Product CatalogPart Number
NEB-300NWA-ANH
Manufacturer
CUI Inc.Description
DC DC CONVERTER 12V 300W
Datasheet
DatasheetPackage
5-DIP Module, 1/8 Brick
In Stock
43,610 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NEB-300NWA-ANH
NEB-300NWA-ANH
lmages are for reference only.Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 12V 25A 40V - 60V Input
Quick Inquiry
NEB-300NWA-ANH
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | Novum®, NEB-N |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 95.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | NEB-300 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

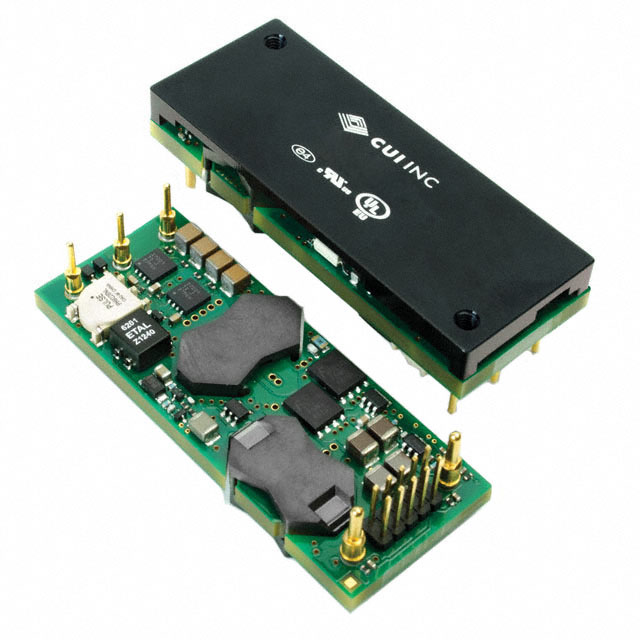

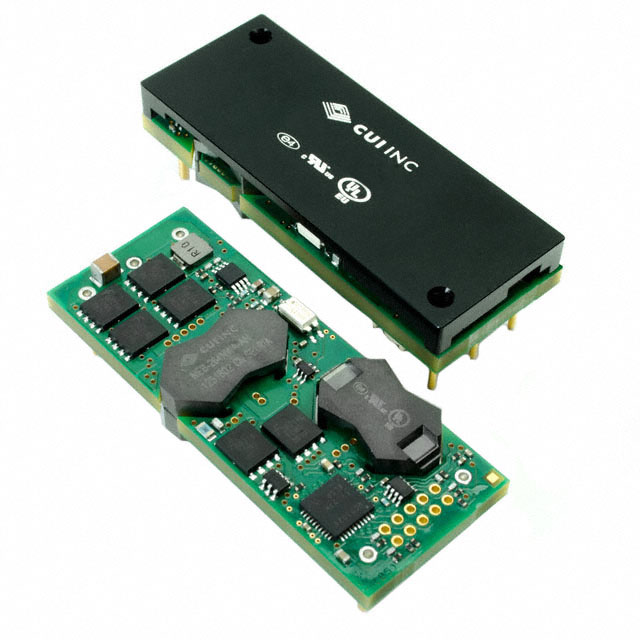

| Part Number | NEB-300NWA-AN | NEB-300NWA-ANH | NEB-264DWA-AN | NEB-264DWA-ANH |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 264W | DC DC CONVERTER 12V 264W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tray | Tray | Box | Box |
