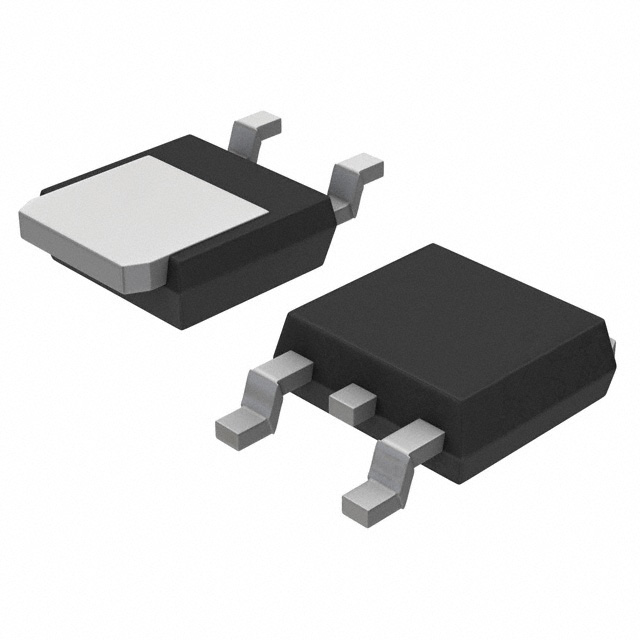

Power Switch/Driver 1:1 N-Channel 9A DPAK
NID9N05ACLT4G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 52V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 90mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Over Voltage |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | NID9N05 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | NID9N05BCLT4G | NID9N05CL | NID9N05CLG | NID9N05CLT4 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | MOSFET N-CH 52V 9A LL DPAK-3 | IC PWR DRIVER N-CHANNEL 1:1 DPAK | IC PWR DRIVER N-CHANNEL 1:1 DPAK | IC PWR DRIVER N-CHANNEL 1:1 DPAK |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
