NJM2819ADL3-05-TE1
lmages are for reference only.NJM2819ADL3-05-TE1
IC REG LINEAR 5V 2A TO252-5
DatasheetTO-252-6, DPAK (5 Leads + Tab)
74,834 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 2A TO-252-5
NJM2819ADL3-05-TE1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.09V @ 1A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 800 µA |
| PSRR | 65dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Supplier Device Package | TO-252-5 |
| Base Product Number | NJM2819 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

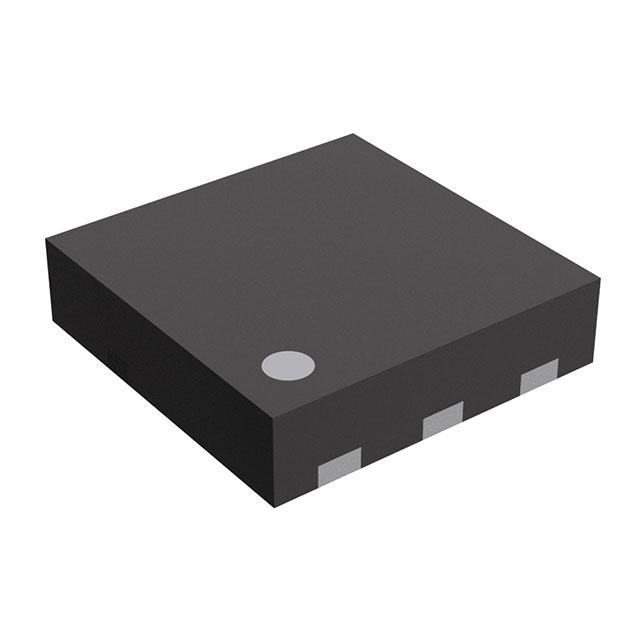

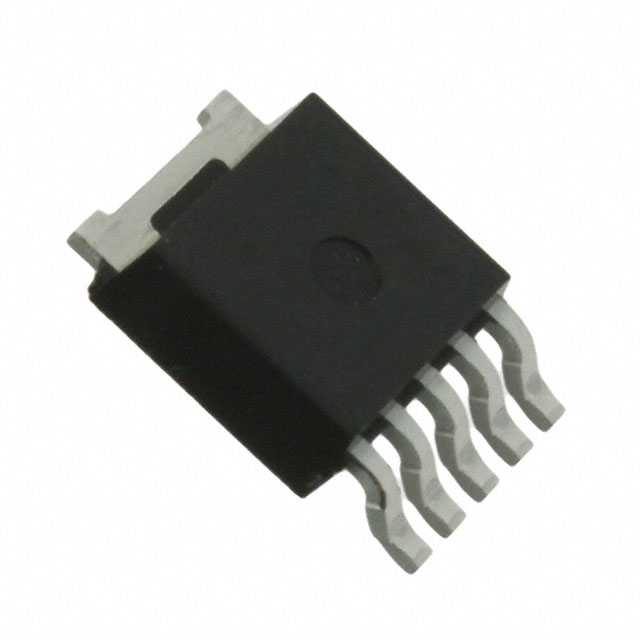

| Part Number | NJM2819ADL3-33-TE1 | NJM11100F1-TE2 | NJM11100KH1-TE3 | NJM12856DL3-05-TE1 |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LINEAR 3.3V 2A TO252-5 | IC REG LIN POS ADJ 240MA SOT23-1 | IC REG LINEAR POS ADJ 240MA 6DFN | IC REG LINEAR 5V 1A TO252-5 |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
