Product CatalogPart Number
NL1-3P3-P5
Manufacturer
Adam TechDescription
DC-DC CONVERTER, NON-ISOLATED, S
Datasheet
DatasheetPackage
3-SIP Module
In Stock
96,195 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NL1-3P3-P5
NL1-3P3-P5
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 500mA 4.75V - 34V Input
Quick Inquiry
NL1-3P3-P5
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Adam Tech |
| Series | NL1-P5 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 34V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 1.65 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.41" H (11.7mm x 7.5mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  | |  |  |

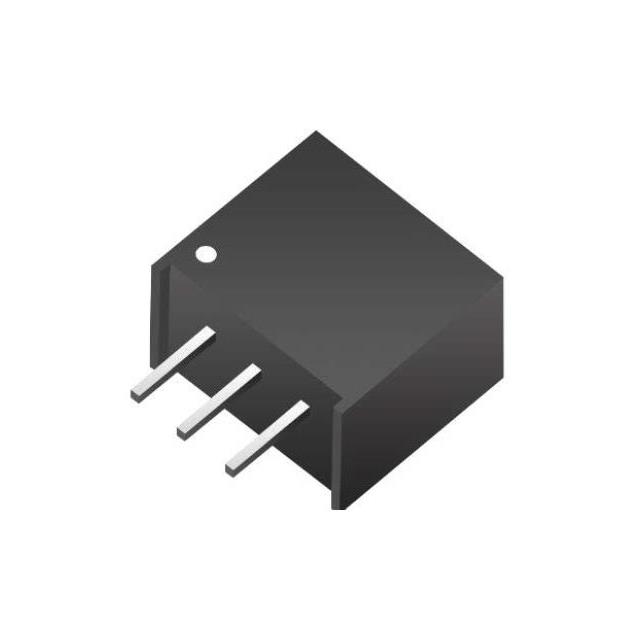

| Part Number | NL1-3P3-1A | NL1-3P3-1A | NL1-05-1A | NL1-05-P5 |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC CONVERTER, NON-ISOLATED, S | DC-DC CONVERTER, NON-ISOLATED, S | DC-DC CONVERTER, NON-ISOLATED, S | DC-DC CONVERTER, NON-ISOLATED, S |
| Series | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| Packaging | Tube | Tube | Tube | Tube |
