NL565050T-392J-PF

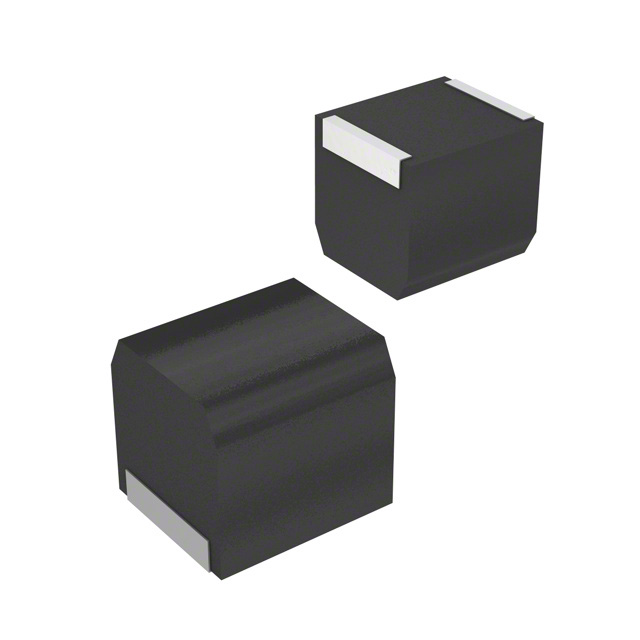

lmages are for reference only.NL565050T-392J-PF
FIXED IND 3.9MH 38MA 70 OHM SMD
Datasheet2220 (5650 Metric)
23,173 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 mH Unshielded Wirewound Inductor 38 mA 70Ohm Max 2220 (5650 Metric)
NL565050T-392J-PF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | NL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.9 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 38 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70Ohm Max |
| Q @ Freq | 30 @ 252kHz |
| Frequency - Self Resonant | 1MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | NL565050T-332J-PF | NL565050T-392J-PF | NL565050T-103J-PF | NL565050T-122J-PF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ||||
| Description | FIXED IND 3.3MH 40MA 60 OHM SMD | FIXED IND 3.9MH 38MA 70 OHM SMD | FIXED IND 10MH 25MA 150 OHM SMD | FIXED IND 1.2MH 75MA 17 OHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
