NLFC453232T-4R7M-PF

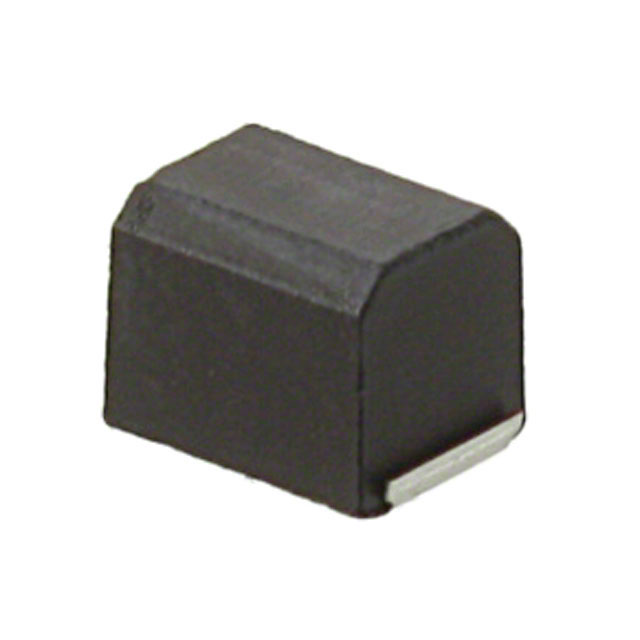

lmages are for reference only.NLFC453232T-4R7M-PF
FIXED IND 4.7UH 400MA 100MOHM SM
Datasheet1812 (4532 Metric)
89,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Wirewound Inductor 400 mA 100mOhm 1812 (4532 Metric)
NLFC453232T-4R7M-PF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | NLFC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | NLFC453232T-470K-PF | NLFC453232T-4R7M-PF | NLFC453232T-100K-PF | NLFC453232T-100K-PF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 120MA 850MOHM SMD | FIXED IND 4.7UH 400MA 100MOHM SM | FIXED IND 10UH 250MA 210MOHM SMD | FIXED IND 10UH 250MA 210MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
