NLFV32T-2R2M-EF

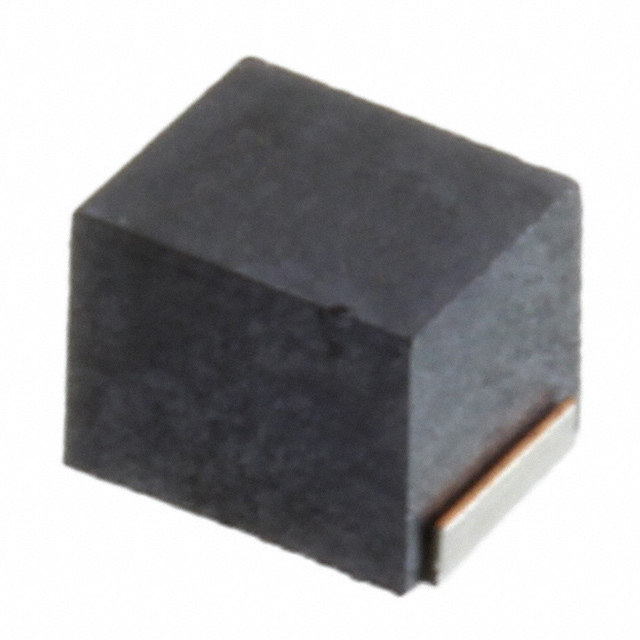

lmages are for reference only.NLFV32T-2R2M-EF
FIXED IND 2.2UH 500MA 108MOHM SM
Datasheet1210 (3225 Metric)
77,033 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Shielded Drum Core, Wirewound Inductor 500 mA 108mOhm Max 1210 (3225 Metric)
NLFV32T-2R2M-EF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | NLFV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 108mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NLFV32T-2R2M-EFT | NLFV32T-220K-EF | NLFV32T-220K-EFT | NLFV32T-221K-EF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 500MA 108MOHM SM | FIXED IND 22UH 120MA 480MOHM SMD | FIXED IND 22UH 120MA 480MOHM SMD | FIXED IND 220UH 40MA 6.12OHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
