NLV32T-015J-PFD

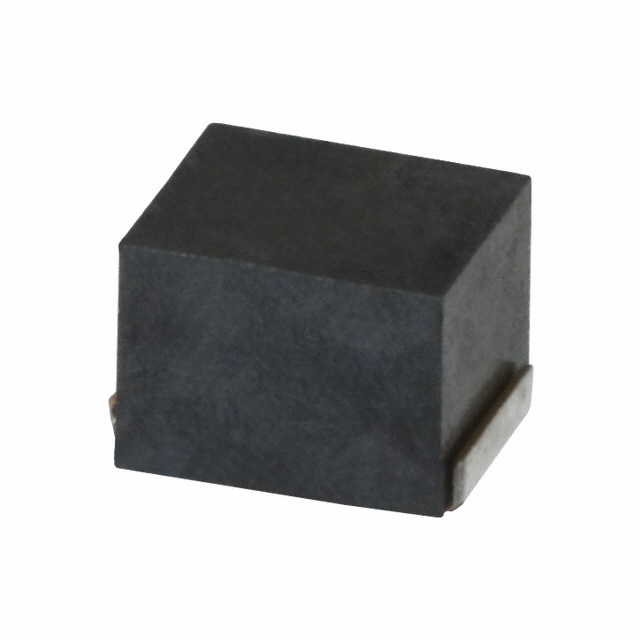

lmages are for reference only.NLV32T-015J-PFD
FIXED IND 15NH 450MA 160MOHM SMD
Datasheet1210 (3225 Metric)
75,820 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 nH Unshielded Drum Core, Wirewound Inductor 450 mA 160mOhm Max 1210 (3225 Metric)
NLV32T-015J-PFD
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | NLV-PFD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | 19 @ 100MHz |
| Frequency - Self Resonant | 2.1GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NLV32T-015J-EF | NLV32T-015J-EFD | NLV32T-015J-PF | NLV32T-010J-EF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15NH 450MA 160MOHM SMD | FIXED IND 15NH 450MA 160MOHM SMD | FIXED IND 15NH 450MA 160MOHM SMD | FIXED IND 10NH 450MA 130MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
