NPH25S2405EIC
lmages are for reference only.NPH25S2405EIC
DC DC CONVERTER 5.1V 25W
Datasheet6-DIP Module
33,226 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5.1V 5A 18V - 36V Input
NPH25S2405EIC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | NPH25S (25W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 25 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 110°C |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.97" L x 1.38" W x 0.39" H (50.0mm x 35.1mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | NPH25S24 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
 |
 |

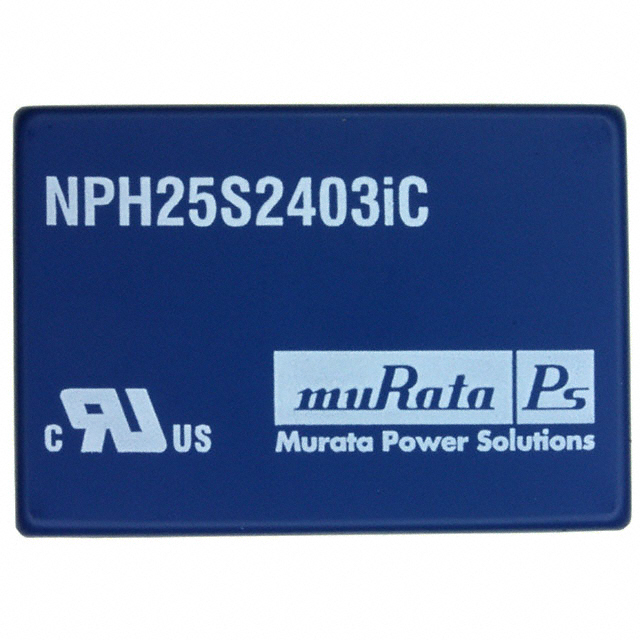

| Part Number | NPH25S2405EIC | NPH25S2405IC | NPH25S2403IC | NPH25S2412EIC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | |||
| Description | DC DC CONVERTER 5.1V 25W | DC DC CONVERTER 5.1V 25W | DC DC CONVERTER 3.4V 25W | DC DC CONVERTER 12.1V 25W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
