Product CatalogPart Number
NPLC1501C471MJTM
Manufacturer
YminDescription
CAP ALUM POLY 470UF 20% 16V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
64,890 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NPLC1501C471MJTM
NPLC1501C471MJTM
lmages are for reference only.Payment Methods
Delivery Services
470 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 5000 Hrs @ 105°C
Quick Inquiry
NPLC1501C471MJTM
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Ymin |
| Series | NPL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 284 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.68 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | 10 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

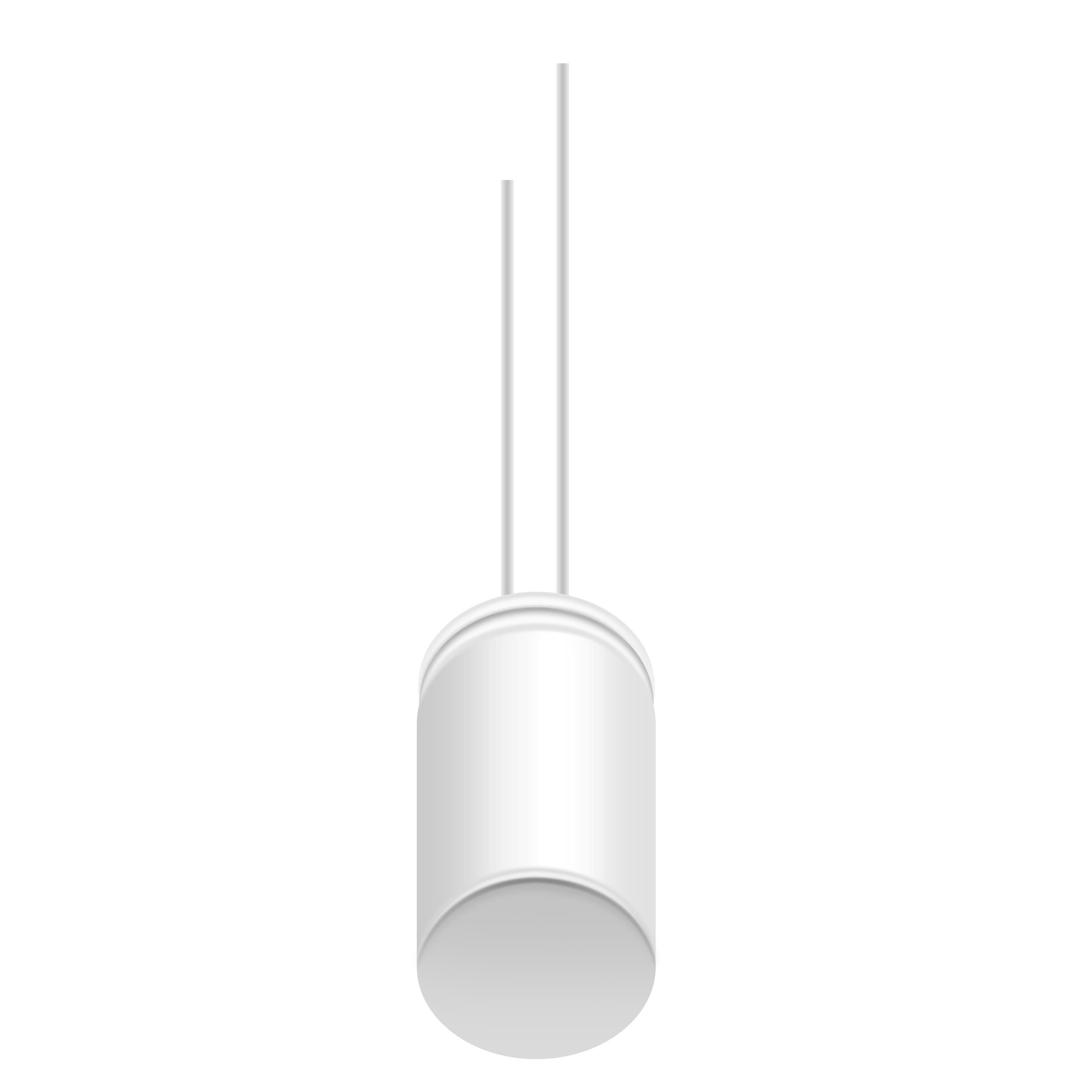

| Part Number | NPXH1501E561MJTM | NPXH0901E221MJTM | NPXH1501E471MJTM | PCL1A680MCL1GS |
| Manufacturer | Ymin | Ymin | Ymin | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 560UF 20% 25V TH | CAP ALUM POLY 220UF 20% 25V TH | CAP ALUM POLY 470UF 20% 25V TH | CAP ALUM POLY 68UF 20% 10V SMD |
| Series | NPX | NPX | NPX | PCL |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
