Product CatalogPart Number
NPPC352KFMS-RC
Manufacturer
Sullins Connector SolutionsDescription
CONN HDR 70POS 0.1 GOLD SMD
Datasheet
DatasheetPackage
-
In Stock
23,814 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NPPC352KFMS-RC
NPPC352KFMS-RC

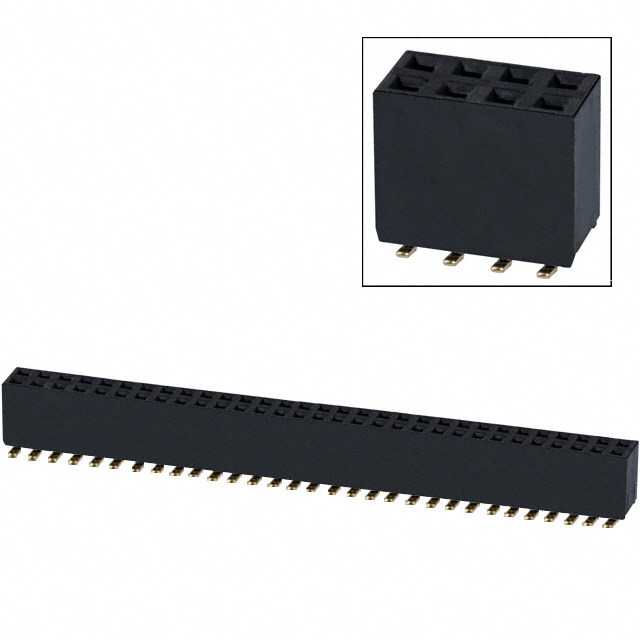

lmages are for reference only.Payment Methods
Delivery Services
70 Position Header Connector 0.100" (2.54mm) Surface Mount Gold
Quick Inquiry
NPPC352KFMS-RC
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 70 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.299" (7.60mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Applications | - |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | Flash |
| Base Product Number | NPPC352 |
