NPT35015D
lmages are for reference only.NPT35015D
RF MOSFET HEMT 28V 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
29,788 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 28 V 200 mA 3.3GHz ~ 3.8GHz 10.5dB 1.7W 8-SOIC-EP
NPT35015D
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | HEMT |
| Configuration | - |
| Frequency | 3.3GHz ~ 3.8GHz |
| Gain | 10.5dB |
| Voltage - Test | 28 V |
| Current Rating (Amps) | 5A |
| Noise Figure | - |
| Current - Test | 200 mA |
| Power - Output | 1.7W |
| Voltage - Rated | 100 V |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | NPT35015 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

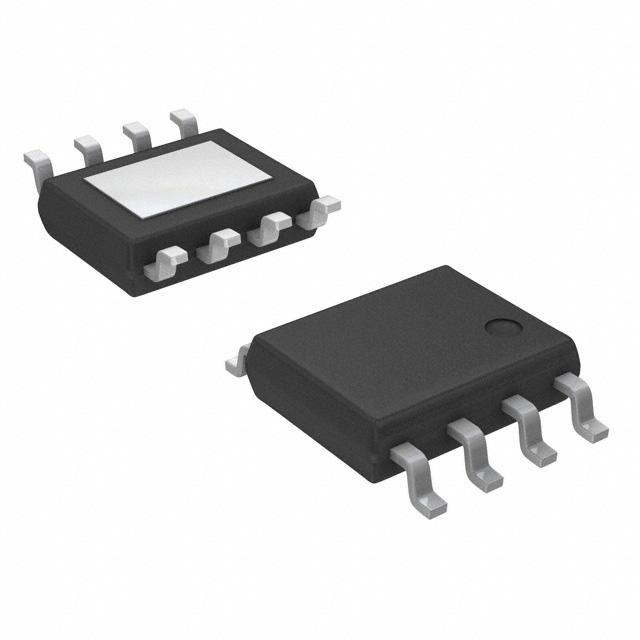

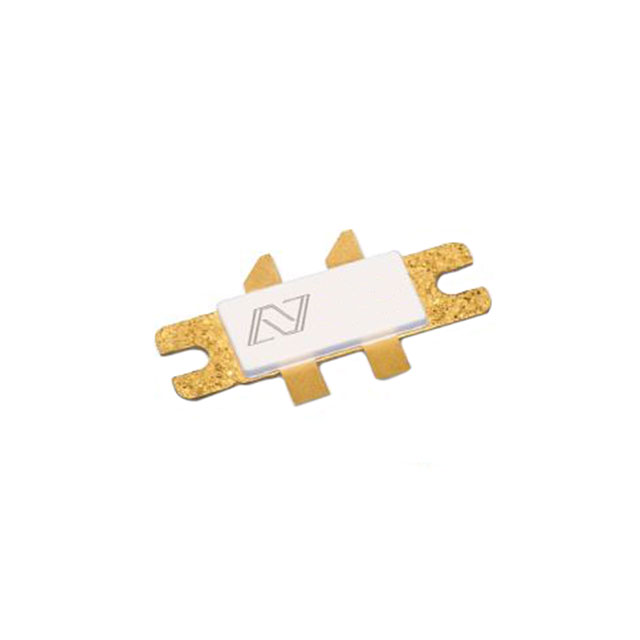

| Part Number | NPT35050AB | NPT1004D | NPT1007B | NPT1010B |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RF MOSFET HEMT 28V | RF MOSFET HEMT 28V 8SOIC | RF MOSFET HEMT 28V | RF MOSFET HEMT 28V |
| Series | - | - | - | - |
| Packaging | Tray | Tube | Bulk | Tray |
