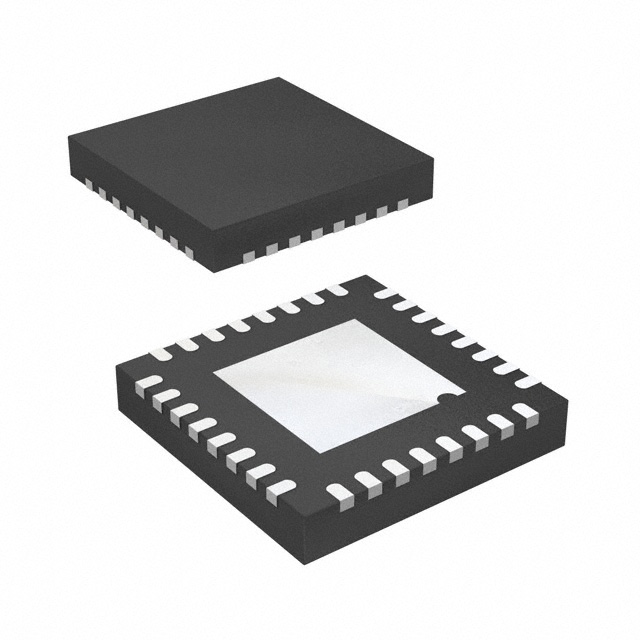

NRF24LU1P-O17Q32-T
lmages are for reference only.NRF24LU1P-O17Q32-T
IC RF TXRX+MCU ISM>1GHZ 32QFN
Datasheet32-VFQFN Exposed Pad
57,535 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU General ISM > 1GHz 2.4GHz 32-VFQFN Exposed Pad
NRF24LU1P-O17Q32-T
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Nordic Semiconductor ASA |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM > 1GHz |
| Protocol | - |
| Modulation | GFSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 0dBm |
| Sensitivity | -94dBm |
| Memory Size | 17kB OTP, 2kB SRAM |
| Serial Interfaces | SPI, UART, USB |
| GPIO | 6 |
| Voltage - Supply | 4V ~ 5.25V |
| Current - Receiving | 12.9mA ~ 13.3mA |
| Current - Transmitting | 11.1mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | NRF24 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NRF24LU1P-O17Q32-R | NRF24LU1P-O17Q32-R7 | NRF24LU1P-F16Q32-R | NRF24LU1P-F16Q32-R7 |
| Manufacturer | Nordic Semiconductor ASA | Nordic Semiconductor ASA | Nordic Semiconductor ASA | Nordic Semiconductor ASA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU ISM>1GHZ 32QFN | IC RF TXRX+MCU ISM>1GHZ 32QFN | IC RF TXRX+MCU ISM>1GHZ 32QFN | IC RF TXRX+MCU ISM>1GHZ 32QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
