NRF52840-QFAA-R7

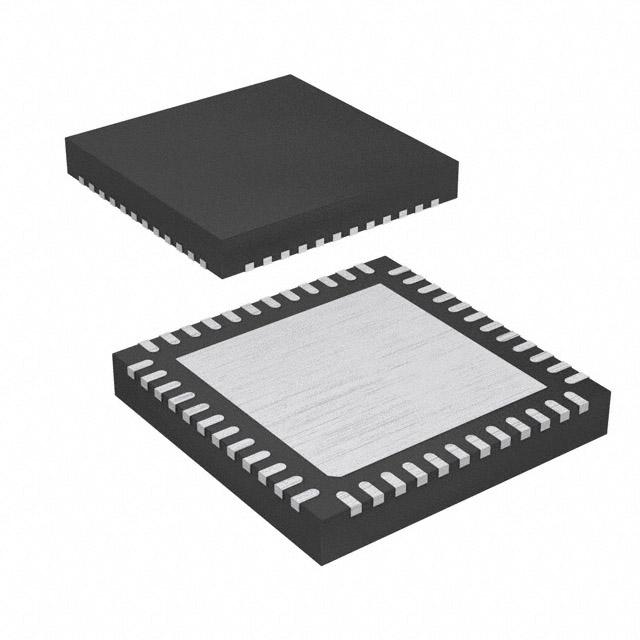

lmages are for reference only.NRF52840-QFAA-R7
IC RF TXRX+MCU 802.15.4 48QFN
Datasheet48-VFQFN Exposed Pad
49,163 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 2.4GHz 48-VFQFN Exposed Pad
NRF52840-QFAA-R7
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Nordic Semiconductor ASA |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee® |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 8dBm |
| Sensitivity | -103dBm |
| Memory Size | 1MB Flash, 256kB RAM |
| Serial Interfaces | ADC, I2S, PDM, PWM, SPI, UART, USB |
| GPIO | 48 |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 3.7mA ~ 11.1mA |
| Current - Transmitting | 2.3mA ~ 32.7mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (6x6) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NRF52840-QFAA-F-R | NRF52840-QFAA-F-R7 | NRF52840-QFAA-R | NRF52840-QIAA-F-R |
| Manufacturer | Nordic Semiconductor ASA | Nordic Semiconductor ASA | Nordic Semiconductor ASA | Nordic Semiconductor ASA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 73QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
