Product CatalogPart Number
NRS6012T3R3NMGG
Manufacturer
Taiyo YudenDescription
FIXED IND 3.3UH 1.7A 126MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
88,903 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NRS6012T3R3NMGG
NRS6012T3R3NMGG
lmages are for reference only.Payment Methods
Delivery Services
3.3 µH Shielded Drum Core, Wirewound Inductor 1.7 A 126mOhm Max Nonstandard
Quick Inquiry
NRS6012T3R3NMGG
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | NR, S Type |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 126mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 42MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

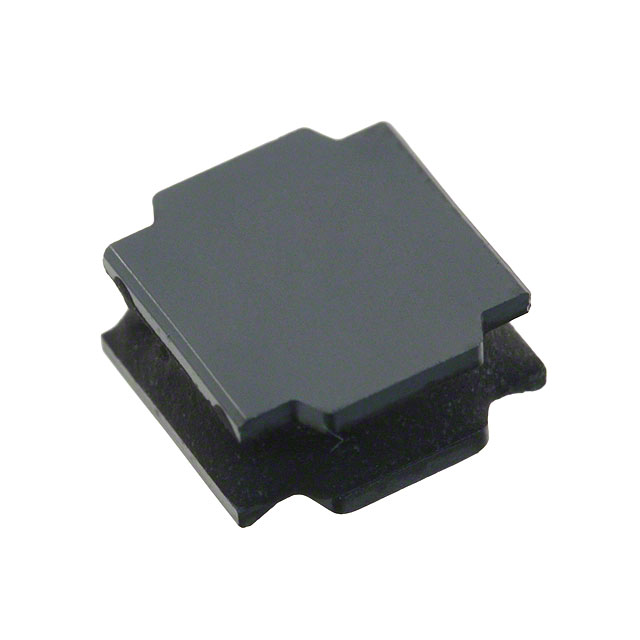

| Part Number | NRS6012T330MMGJV | NRS6012T330MMGJV | NRS6012T3R3NMGGV | NRS6010T100MMGF |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33UH 550MA 696MOHM SMD | FIXED IND 33UH 550MA 696MOHM SMD | FIXED IND 3.3UH 1.7A 126MOHM SMD | FIXED IND 10UH 1.1A 324 MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
NRS6010T100MMGF
Taiyo Yuden
NRS6010T1R5MMGF
Taiyo Yuden

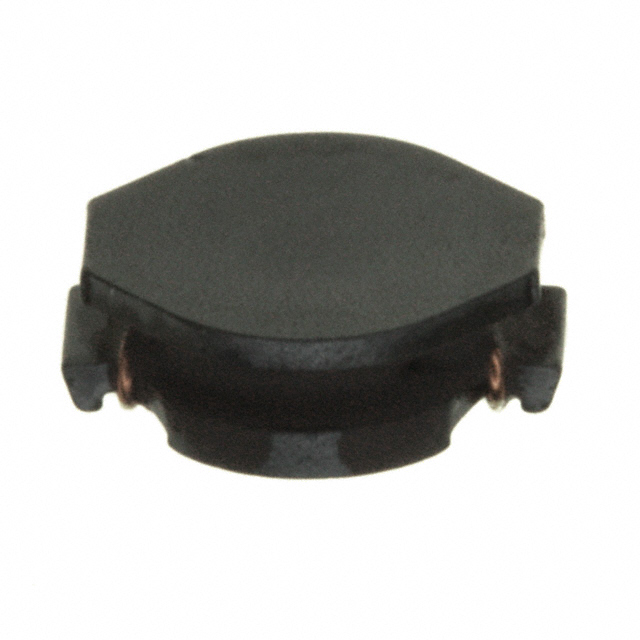

NRS6010T1R5MMGFV
