NSC5342B-156.25M

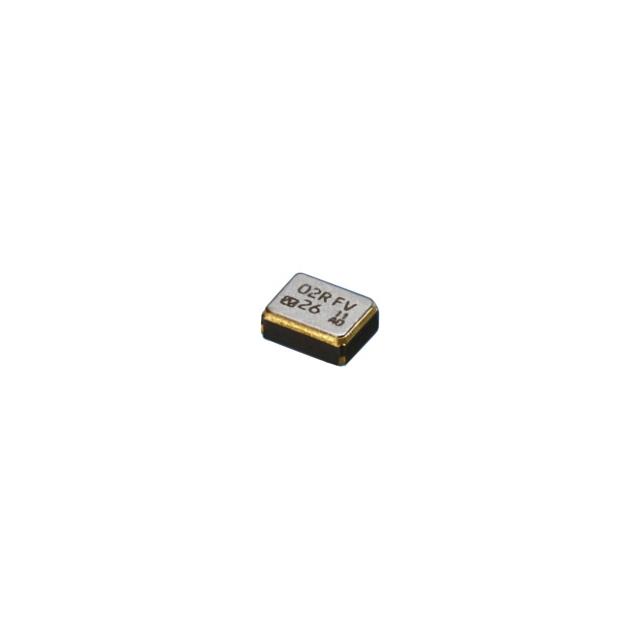

lmages are for reference only.NSC5342B-156.25M
OSC XO 156.25MHZ LVPECL 3.3V SMD
Datasheet6-SMD, No Lead
38,716 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead

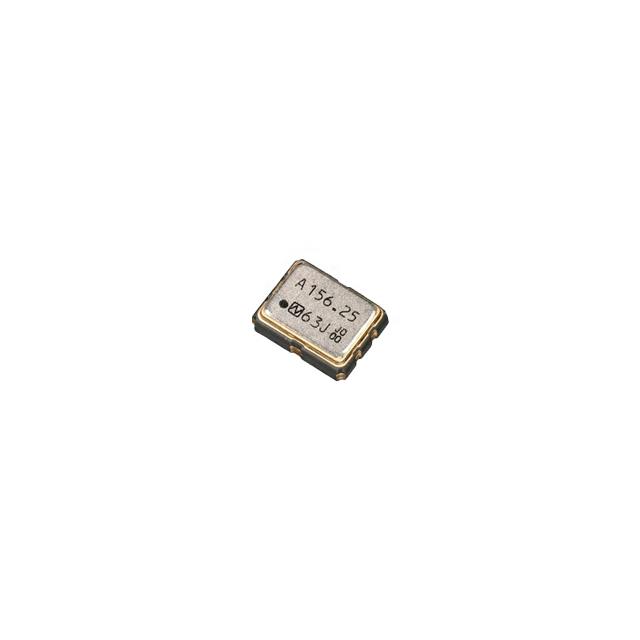

NSC5342B-156.25M
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | NDK America, Inc. |
| Series | NP3225SA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 156.25 MHz |
| Function | Standby (Power Down) |
| Output | LVPECL |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 60mA |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | NSC5342B-100M | NSC5342B-125M | NSC5344B-100M | NSC5344B-125M |
| Manufacturer | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OSC XO 100MHZ LVPECL 3.3V SMD | OSC XO 125MHZ LVPECL 3.3V SMD | XTAL OSC XO 100MHZ LVDS 3.3V SMD | OSC XO 125MHZ LVDS 3.3V SMD |
| Series | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
