NSCDANN001PGUNV

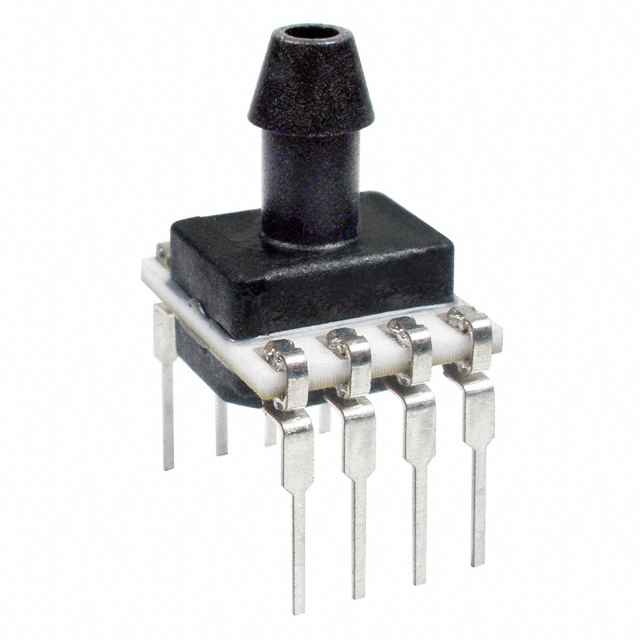

lmages are for reference only.NSCDANN001PGUNV
SENSOR 1PSIG 0.19" .0325V 8DIP
Datasheet8-DIP (0.524", 13.30mm), Top Port
55,364 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0 mV ~ 32.5 mV (5V) 8-DIP (0.524", 13.30mm), Top Port
NSCDANN001PGUNV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® NSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | NSCDANN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1PSI (6.89kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 32.5 mV (5V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | 10PSI (68.95kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NSCDANN005PGUNV | NSCDANN015PAUNV | NSCDANN015PGUNV | NSCDANN020NGUNV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 5PSIG 0.19" .075V 8DIP | SENSOR 15PSIA 0.19" .075V 8DIP | SENSOR 15PSIG 0.19" .0775V 8DIP | SENSOR 0.72PSIG 0.19" .0235V DIP |
| Series | TruStability® NSC | TruStability® NSC | TruStability® NSC | TruStability® NSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
