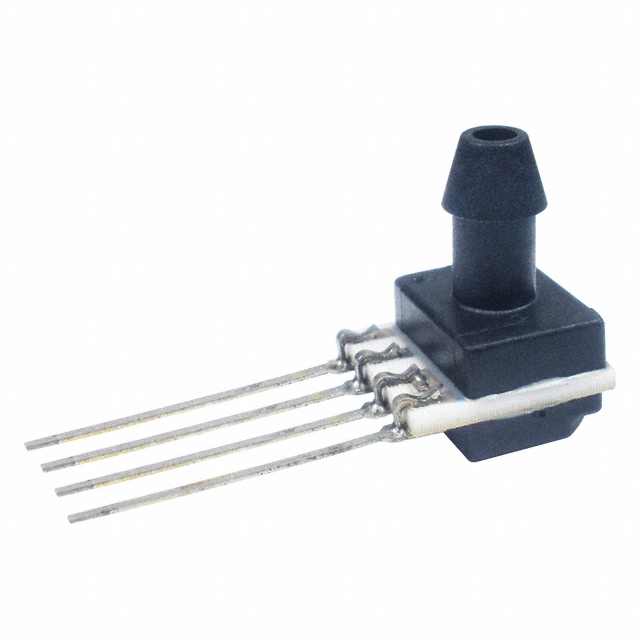

NSCSANN100MGUNV
lmages are for reference only.NSCSANN100MGUNV
SENSOR 1.45PSIG 0.19" .047V 4SIP
Datasheet4-SIP, Side Port
55,042 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1.45PSI (10kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0 mV ~ 47 mV (5V) 4-SIP, Side Port
NSCSANN100MGUNV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® NSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | NSCSANN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1.45PSI (10kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 47 mV (5V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | 12.33PSI (85kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Side Port |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | NSCSANN100MGUNV | NSCSANN100PGUNV | NSCSAAN001BDUNV | NSCSAAN004NDUNV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1.45PSIG 0.19" .047V 4SIP | SENSOR 100PSIG 0.19" .086V 4SIP | SENSOR 14.5PSID 0.19" .15V 4SIP | SENSOR 0.15PSID 0.19" .262V 4SIP |
| Series | TruStability® NSC | TruStability® NSC | TruStability® NSC | TruStability® NSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
