NSCSHHN100PDUNV

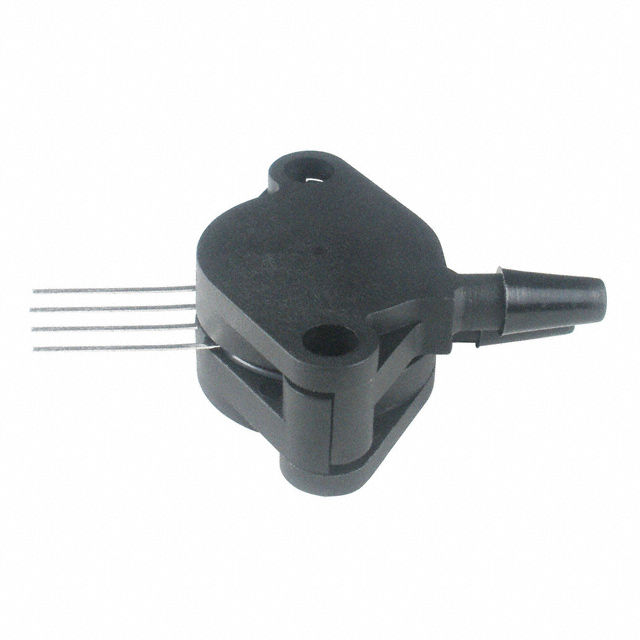

lmages are for reference only.NSCSHHN100PDUNV
SENSOR 100PSID 0.16" .1725V 4SIP
Datasheet4-SIP, Dual Ports, Same Side
15,007 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±100PSI (±689.48kPa) Differential Male - 0.16" (3.94mm) Tube, Dual 0 mV ~ 172.5 mV (5V) 4-SIP, Dual Ports, Same Side
NSCSHHN100PDUNV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® NSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | NSCSHHN |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±100PSI (±689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 172.5 mV (5V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.16" (3.94mm) Tube, Dual |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | ±250PSI (±1723.69kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | NSCSHHN001PDUNV | NSCSHHN005PDUNV | NSCSHHN010NDUNV | NSCSHHN010NDUNV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSID 0.16" .065V 4SIP | SENSOR 5PSID 0.16" .15V 4SIP | SENSOR 0.36PSID 0.16" .0785V SIP | SENSOR 0.36PSID 0.16" .0785V SIP |
| Series | TruStability® NSC | TruStability® NSC | TruStability® NSC | TruStability® NSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
