NSR163B
lmages are for reference only.NSR163B
DISP 7SEG 0.6" OV/FL RED 10DIP
Datasheet10-DIP (0.600", 15.24mm)
84,657 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment +/-1 (overflow) Character Universal 1.7V 20mA 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) 10-DIP (0.600", 15.24mm)
NSR163B
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Characters | +/-1 (overflow) |
| Size / Dimension | 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) |
| Digit/Alpha Size | 0.60" (15.24mm) |
| Display Type | 7-Segment |
| Common Pin | Universal |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Millicandela Rating | 12mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 60mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | NSR163 |
| Display Format | - |
| Product Attribute | |
 |
 |
 |

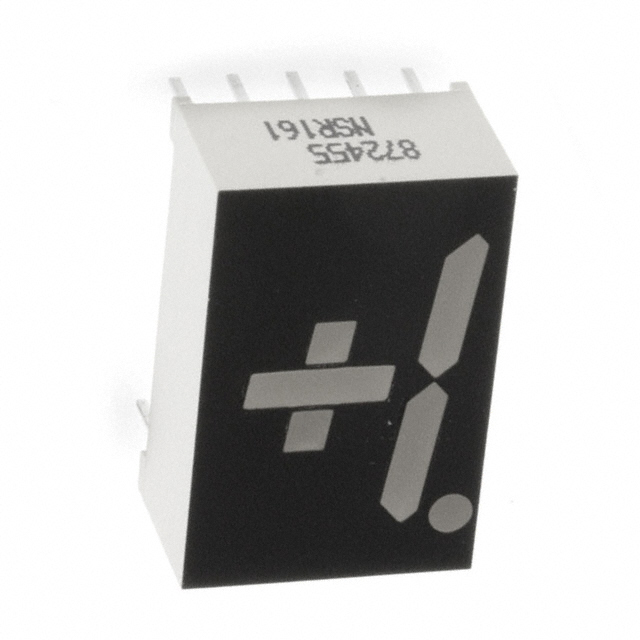

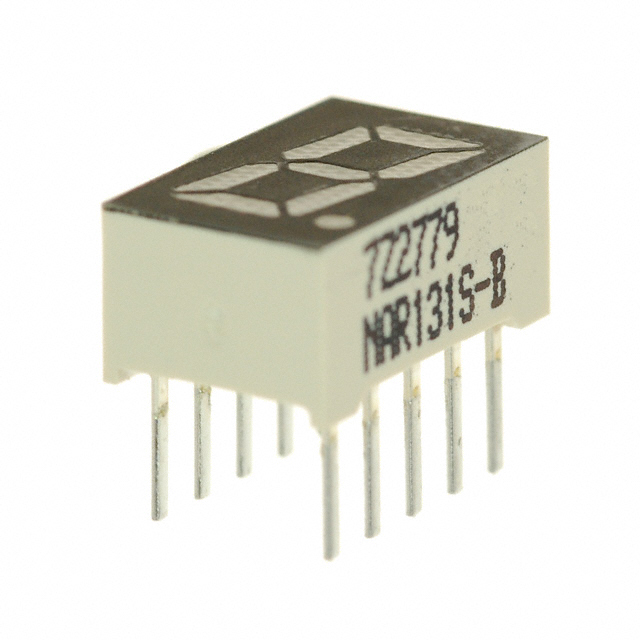

| Part Number | NSR145B | NSR161B | NAR131SB | NAR141B |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ||||
| Description | DISP 7SEG 0.39" OV/FL RED 10DIP | DISP 7SEG 0.6" OV/FL RED 10DIP | DISPLAY 7SEG 0.31" SGL RED 10DIP | DISPLAY 7SEG 0.43" SGL RED 14DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
