Product CatalogPart Number
NSVR05F40NXT5G
Manufacturer
onsemiDescription
DIODE SCHOTTKY 40V 500MA 2DSN
Datasheet
DatasheetPackage
0402 (1006 Metric)
In Stock
53,648 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NSVR05F40NXT5G
NSVR05F40NXT5G
lmages are for reference only.Payment Methods
Delivery Services
Diode 40 V 500mA Surface Mount 2-DSN (1x0.6), (0402)
Quick Inquiry
NSVR05F40NXT5G
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 75 µA @ 40 V |
| Capacitance @ Vr, F | 35pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | NSVR05 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | NSVR0170HT1G | NSVR0170MX2WT5G | NSVR0170P2T5G | NSVR02100HT1G |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE SCHOTTKY 70V 70MA SOD323 | 70V, 100MA SCHOTTKY BARRIER DIOD | DIODE SCHOTTKY 70V 70MA SOD923 | SS SOD323 SHKY DIO 100V TR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
NSVR0170HT1G
onsemi
NSVR0170MX2WT5G
onsemi
NSVR0170P2T5G
onsemi
NSVR02100HT1G
onsemi

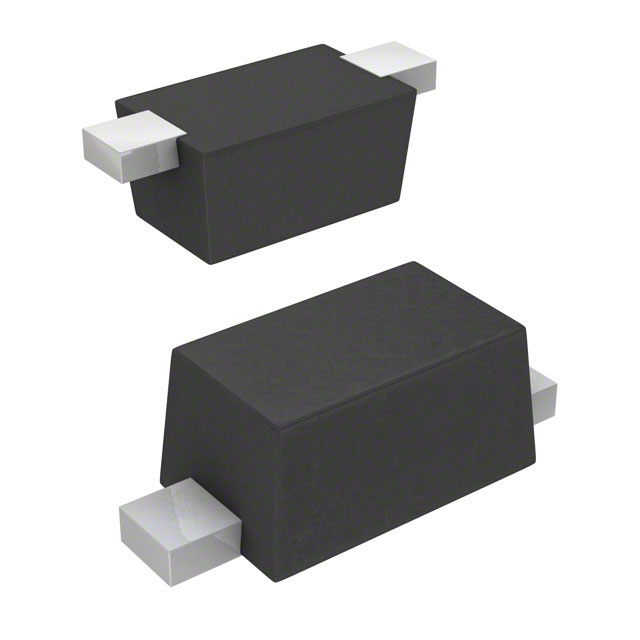

NSVR0230M2T5G
onsemi

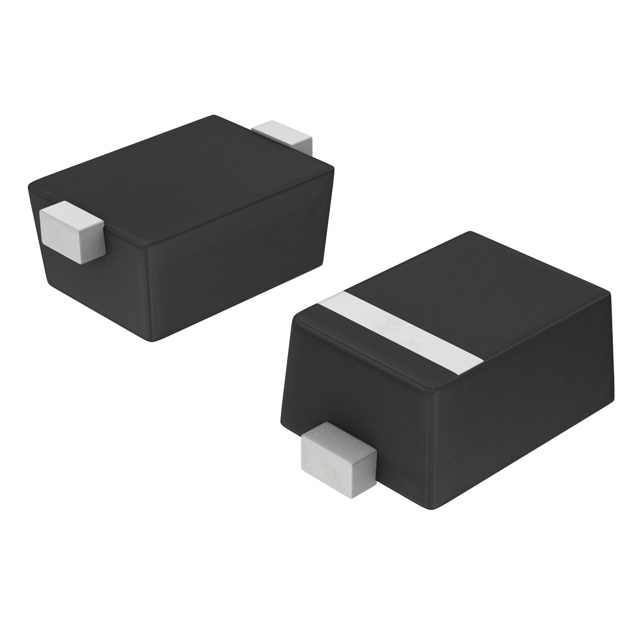

NSVR0230P2T5G
onsemi
NSVR0240HT1G
onsemi
NSVR0240MX2WT5G
onsemi
NSVR0240P2T5G
onsemi

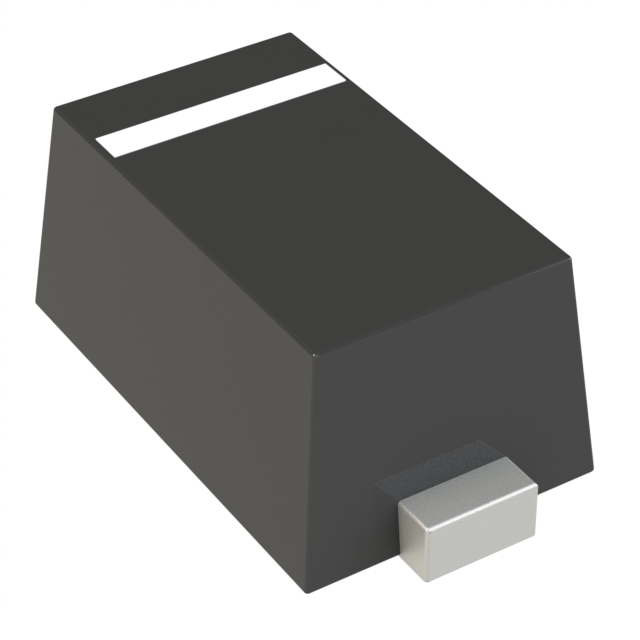

NSVR0240V2T1G
onsemi
NSVR0240V2T5G
onsemi

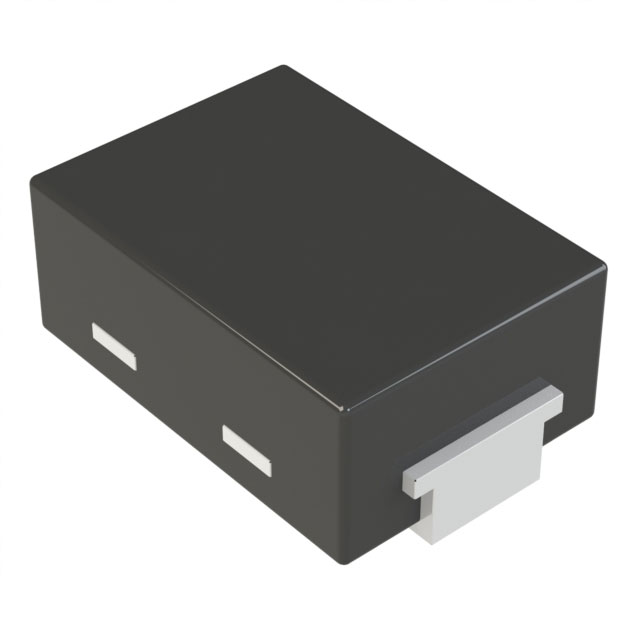

NSVR02HL40MX2WT5G
onsemi
NSVR02L40MX2WT5G
onsemi
NSVR0320MW2T1G
onsemi
NSVR0320XV6T1G
onsemi
NSVR0340HT1G
onsemi
NSVR0340P2T5G
onsemi

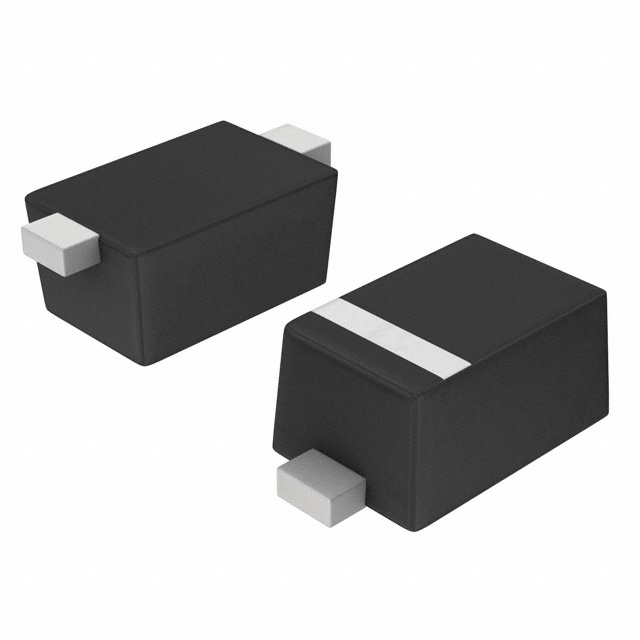

NSVR0520V2T1G
