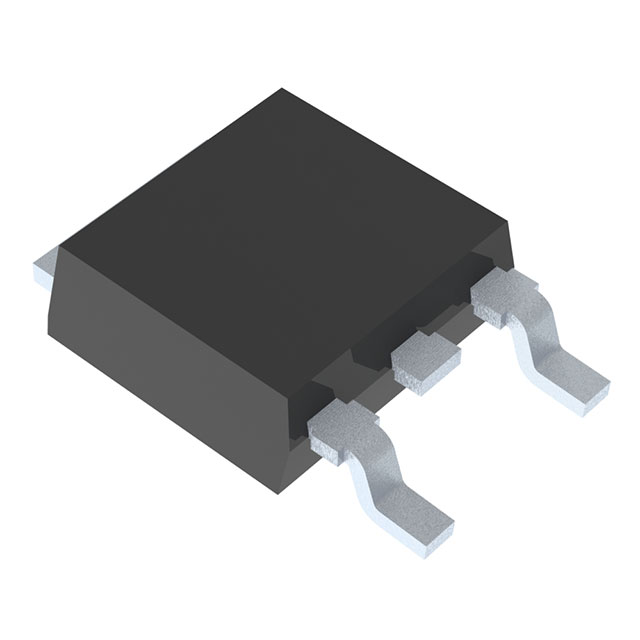

N-Channel 24 V 12.5A (Ta), 110A (Tc) 1.5W (Ta), 110W (Tc) Surface Mount DPAK
NTD110N02R
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 24 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3440 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta), 110W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | NTD110 |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | NTD110N02R-001 | NTD110N02R-001G | NTD110N02RG | NTD110N02RT4 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | MOSFET N-CH 24V 12.5A/110A IPAK | MOSFET N-CH 24V 12.5A/110A IPAK | MOSFET N-CH 24V 12.5A/110A DPAK | MOSFET N-CH 24V 12.5A/110A DPAK |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
