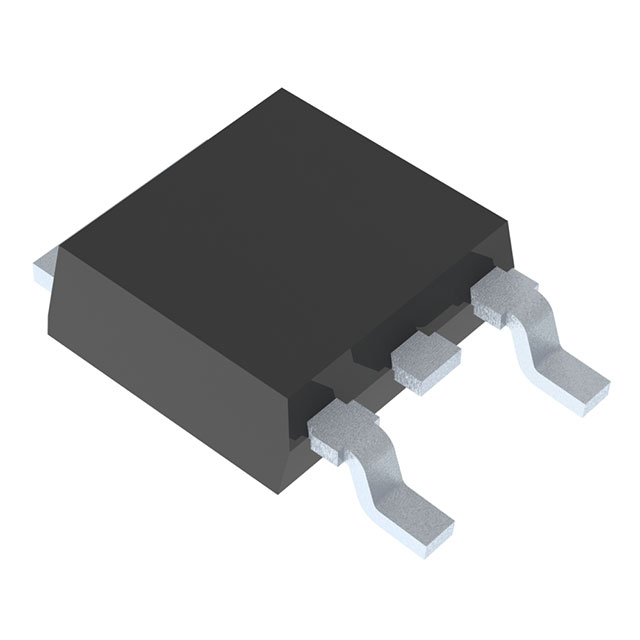

N-Channel 60 V 10A (Ta), 27A (Tc) 3.6W (Ta), 25W (Tc) Surface Mount DPAK
NTD5C684NL
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 16.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 20µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 25W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 9.6 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | NTD5C684NLT4G | NTD5C684NLT4G | NTD5C688NLT4G | NTD50N03R |
| Manufacturer | Flip Electronics | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ||
| Description | MOSFET N-Channel 60V 10A (Ta), 2 | SINGLE N-CHANNEL LOGIC LEVEL POW | MOSFET N-CH 60V 7.5A/17A DPAK | MOSFET N-CH 25V 7.8A/45A DPAK |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
