NTHD4P02FT1G
Manufacturer
onsemiDescription

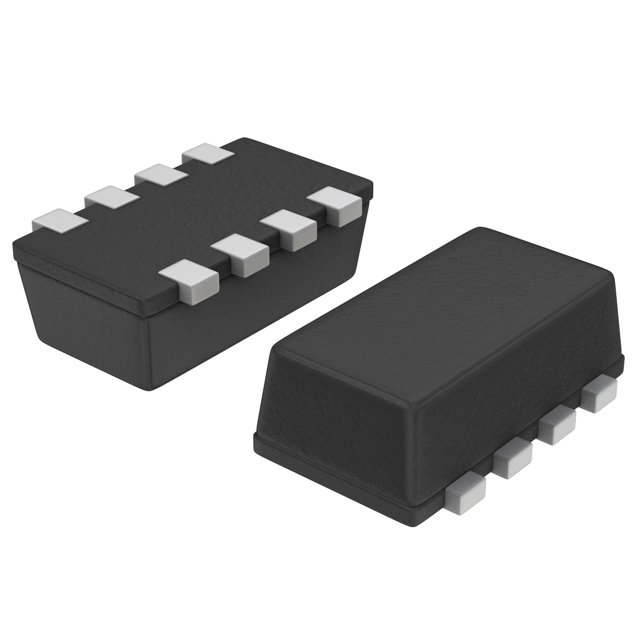

MOSFET P-CH 20V 2.2A CHIPFET
Datasheet
DatasheetPackage
8-SMD, Flat Leads
In Stock
40,621 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NTHD4P02FT1G
NTHD4P02FT1G
lmages are for reference only.Payment Methods
Delivery Services
P-Channel 20 V 2.2A (Tj) 1.1W (Tj) Surface Mount ChipFET™
Quick Inquiry
NTHD4P02FT1G
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 2.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 300 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.1W (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ChipFET™ |
| Package / Case | 8-SMD, Flat Leads |
| Base Product Number | NTHD4 |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
