NTSB20100CTT4G
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 100 V 10A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
NTSB20100CTT4G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 830 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 17 µA @ 70 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Base Product Number | NTSB20100 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

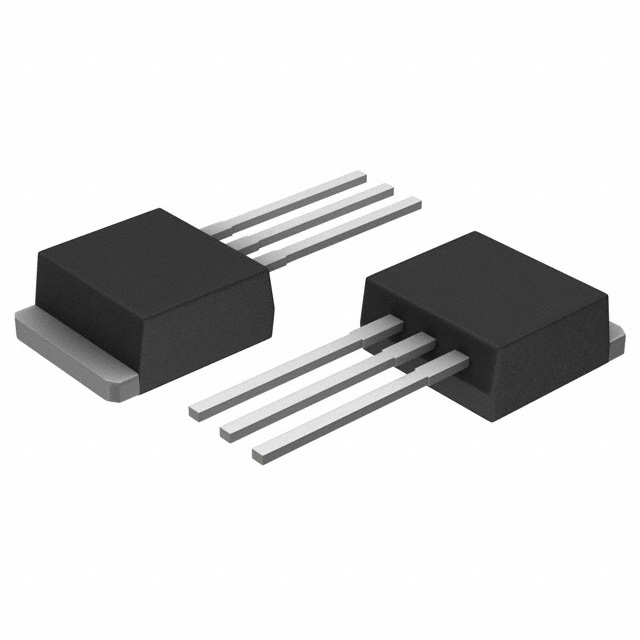

| Part Number | NTSB20100CT-1G | NTSB20100CTG | NTSB20100CTT4G | NTSB20120CT-1GAlternate Purchasing Options |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ARRAY SCHOT 100V 10A TO262 | DIODE ARRAY SCHOT 100V 10A D2PAK | SCHOTTKY POWER RECTIFIER, DUAL, | DIODE ARRAY SCHOT 120V 10A TO262 |
| Series | - | - | * | - |
| Packaging | Tube | Tube | Bulk | Tube |
