NVBG089N65S3F
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 37A (Tc) 291W (Tc) Surface Mount D2PAK-7
NVBG089N65S3F
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 89mOhm @ 18.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 970µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3598 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 291W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | NVBG089 |
| Gate Charge (Qg) (Max) @ Vgs | 74 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

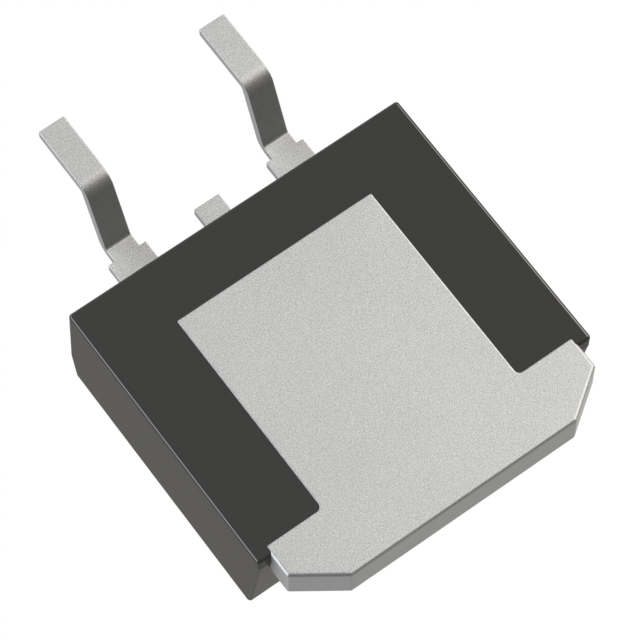

| Part Number | NVB055N60S5F | NVB072N65S3 | NVB082N65S3F | NVB095N65S3F |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SUPERFET5 FRFET, 55MOHM, D2PAK | MOSFET N-CH 650V 44A D2PAK-3 | MOSFET N-CH 650V 40A D2PAK-3 | SF3 FRFET AUTO 95MOHM D2PAK-3 |
| Series | FRFET®, SUPERFET® | SuperFET® III, FRFET® | SuperFET® III, FRFET® | SuperFET® III |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
