NVMFS003N10MCT1G
Manufacturer
onsemiDescription
MOSFET - POWER, SINGLE, N-CHANNE
Datasheet
DatasheetPackage
8-PowerTDFN, 5 Leads
In Stock
54,395 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

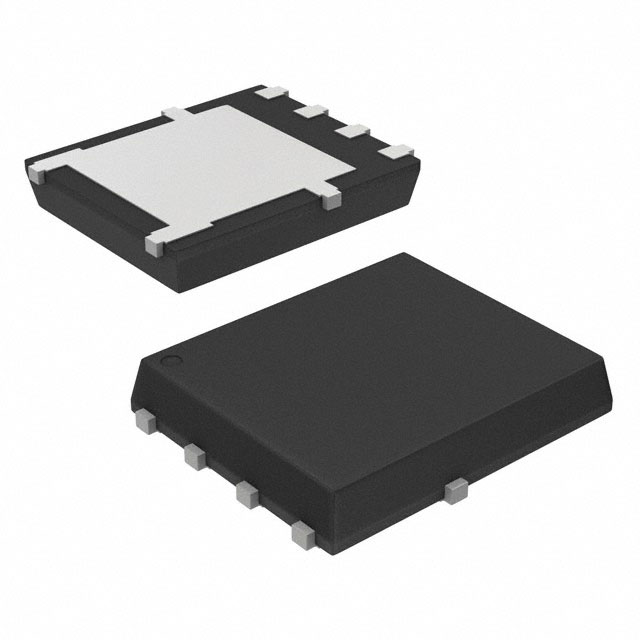

NVMFS003N10MCT1G
NVMFS003N10MCT1G
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 100 V 23.7A (Ta), 169A (Tc) 3.8W (Ta), 194W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
Quick Inquiry
NVMFS003N10MCT1G
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 23.7A (Ta), 169A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 351µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4650 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 194W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
