O 19,20-JTP75HCV-F-K-3,3-1616-08X0-LF

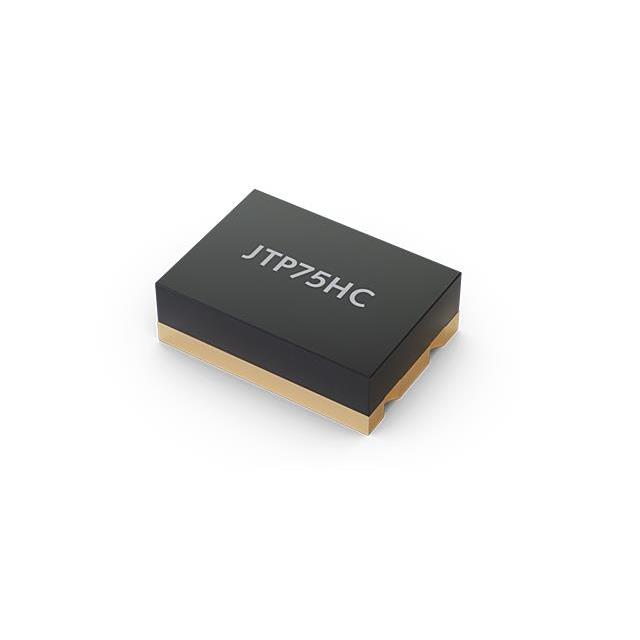

lmages are for reference only.O 19,20-JTP75HCV-F-K-3,3-1616-08X0-LF
XTAL OSC VCTCXO 19.20MHZ HCMOS
Datasheet8-SMD, No Lead
89,585 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
19.2 MHz VCTCXO HCMOS Oscillator 3.3V Amplitude Control 8-SMD, No Lead
O 19,20-JTP75HCV-F-K-3,3-1616-08X0-LF
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Jauch Quartz |
| Series | JTP75HCV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 19.2 MHz |
| Function | Amplitude Control |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 10mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | O 19,20-JTP75HCV-F-P-3,3-1616-08X0-LF | O 19,20-JTP75HCV-F-P-3,3-1616-08X0-LF | O 19,20-JTP75HCV-J-K-3,3-1616-08X0-LF | O 19,20-JTP75HCV-J-P-3,3-1616-08X0-LF |
| Manufacturer | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 19.20MHZ HCMOS | XTAL OSC VCTCXO 19.20MHZ HCMOS | XTAL OSC VCTCXO 19.20MHZ HCMOS | XTAL OSC VCTCXO 19.20MHZ HCMOS |
| Series | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
