O 19,20-JTS53HC-F-P-3,3-LF
lmages are for reference only.O 19,20-JTS53HC-F-P-3,3-LF
XTAL OSC VCTCXO 19.2MHZ HCMOS SM
Datasheet8-SMD, No Lead
12,399 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
19.2 MHz TCXO HCMOS Oscillator 3.3V 8-SMD, No Lead
O 19,20-JTS53HC-F-P-3,3-LF
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Jauch Quartz |
| Series | JTS53HC Stratum 3 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 19.2 MHz |
| Function | - |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 10mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

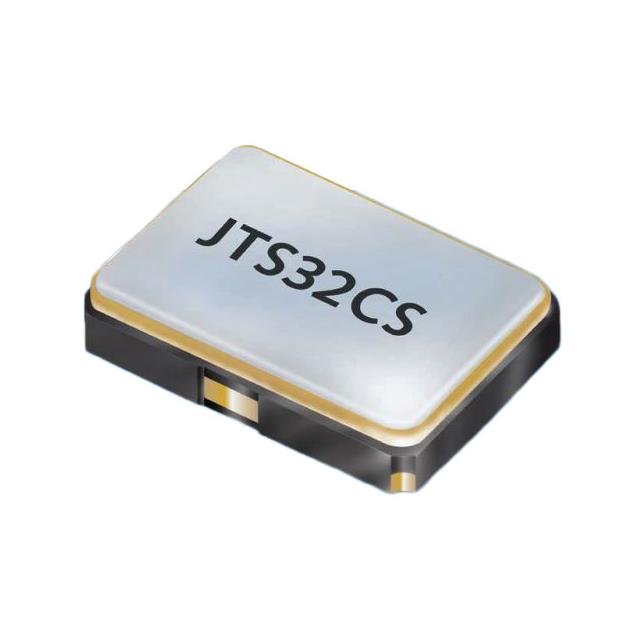

| Part Number | O 19,20-JTS53HC-F-K-3,3-LF | O 19,20-JTS32CSV-F-K-3,3-1510-1015-LF | O 19,20-JTS32CSV-F-K-3,3-1510-1015-LF | O 19,20-JTS75HCV-F-K-3,3-1616-08X0-LF |
| Manufacturer | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 19.2MHZ HCMOS SM | XTAL OSC VCTCXO 19.2MHZ CLPSNW S | XTAL OSC VCTCXO 19.2MHZ CLPSNW S | XTAL OSC VCTCXO 19.2MHZ HCMOS SM |
| Series | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| Packaging | Strip | Strip | Strip | Strip |
