OH200-51003CV-012.8M

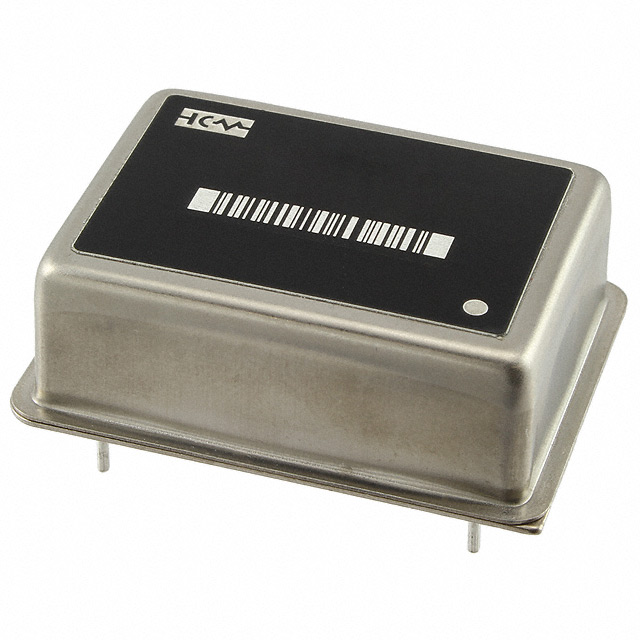

lmages are for reference only.OH200-51003CV-012.8M
XTAL OSC VCOCXO 12.8000MHZ CMOS
Datasheet6-DIP Module, 5 Leads
20,390 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.8 MHz VCOCXO CMOS Oscillator 3.3V 6-DIP Module, 5 Leads
OH200-51003CV-012.8M
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Connor Winfield |
| Series | OH200 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCOCXO |
| Frequency | 12.8 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±5ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module, 5 Leads |
| Size / Dimension | 1.417" L x 1.063" W (36.00mm x 27.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | OH200-51003CV-005.0M | OH200-51003CV-010.0M | OH200-51003CF-005.0M | OH200-51003CF-010.0M |
| Manufacturer | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCOCXO 5.0000MHZ CMOS | XTAL OSC VCOCXO 10.0000MHZ CMOS | XTAL OSC OCXO 5.0000MHZ CMOS TH | XTAL OSC OCXO 10.0000MHZ CMOS TH |
| Series | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| Packaging | Tray | Tray | Tray | Tray |
