OKDL-T/60-W12-001-C

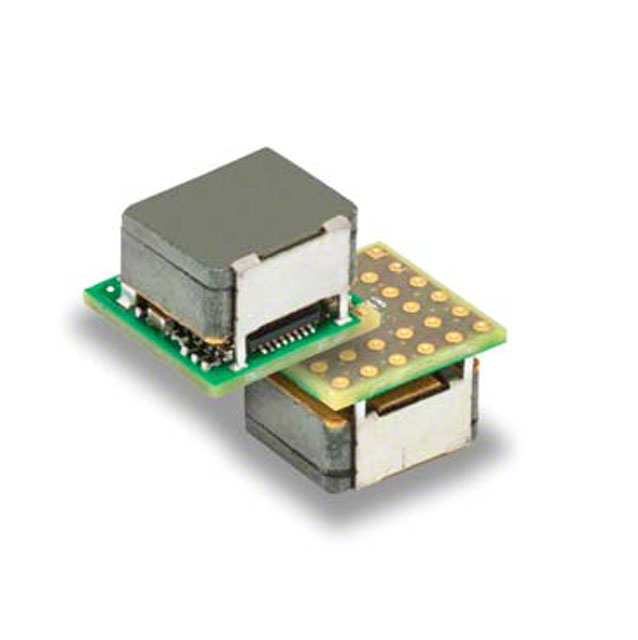

lmages are for reference only.OKDL-T/60-W12-001-C
DC DC CONVERTER 0.6-1.8V
Datasheet84-LGA Module
78,160 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 60A 4.5V - 14V Input
OKDL-T/60-W12-001-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | Okami™ OKDL-T/60-W12-xxx-C |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.6 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 60A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 150°C (With Derating) |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 84-LGA Module |
| Size / Dimension | 0.99" L x 0.56" W x 0.28" H (25.1mm x 14.1mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | OKDL-T |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | OKDL-T/12-W12-001-C | OKDL-T/18-W12-001-C | OKDL-T/6-W12-001-C | 4AA12-P4-25PPM-M-E |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.6-5V | DC DC CONVERTER 0.6-1.8V | DC DC CONVERTER 0.6-5V | DC/DC CONVERTER |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
