OPB760T
lmages are for reference only.OPB760T
SENSOR REFLCTV 5.58MM TOTEM POLE
DatasheetModule
67,322 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Reflective Optical Sensor 0.080" ~ 0.220" (2.03mm ~ 5.59mm) Kodak® Paper Module
OPB760T
| Category | Sensors, Transducers - Optical Sensors - Reflective Logic Output |
| Manufacturer | TT Electronics/Optek Technology |
| Series | Photologic® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Sensing Distance | 0.080" ~ 0.220" (2.03mm ~ 5.59mm) |
| Sensing Method | Reflective |
| Sensing Object | Kodak® Paper |
| Output Configuration | Totem Pole |
| Sensing Light | Infrared |
| Mounting Type | Through Hole |
| Current - Supply | 10 mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Package / Case | Module |
| Features | - |
| Base Product Number | OPB760 |
| Product Attribute |  |
 |
 |
 |

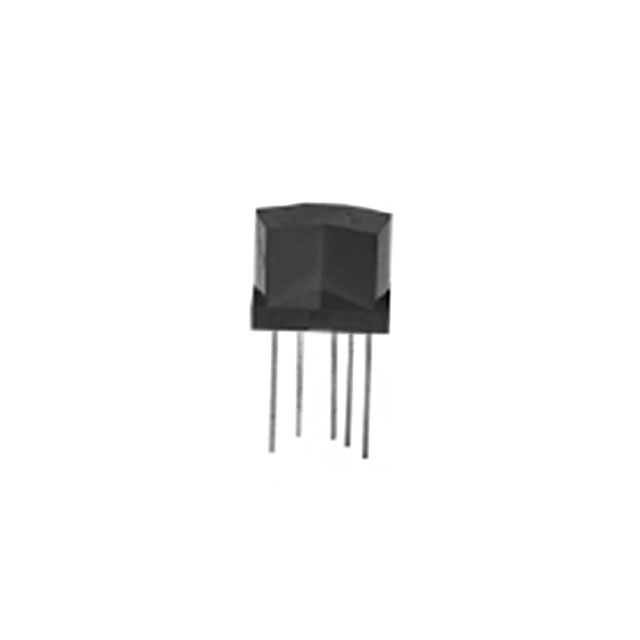

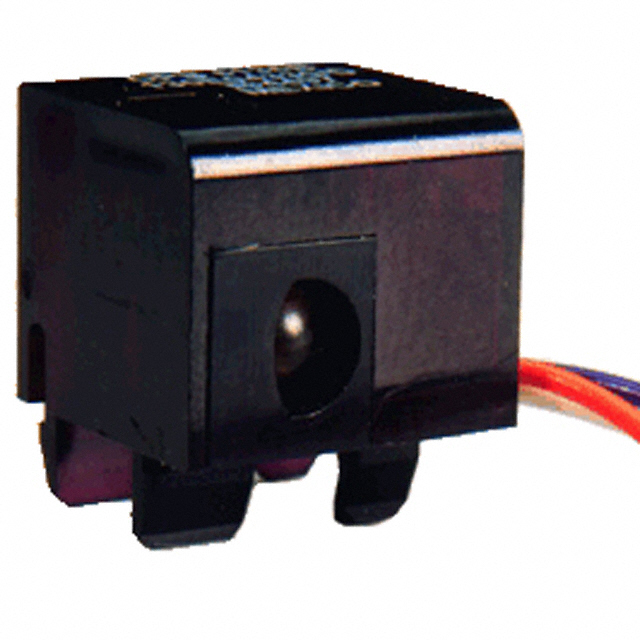

| Part Number | OPB760N | OPB715 | OPB715Z | OPB716 |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | SENSOR REFLCTV 5.58MM TOTEM POLE | SENSOR REFLCTV 12.7MM TOTEM POLE | SENSOR REFLCTV 12.7MM TOTEM POLE | SENSOR REFLECTVE 12.7MM NPN OPEN |
| Series | Photologic® | Photologic® | Photologic® | Photologic® |
| Packaging | Bulk | Bulk | Bulk | Bulk |
