OPI1268S

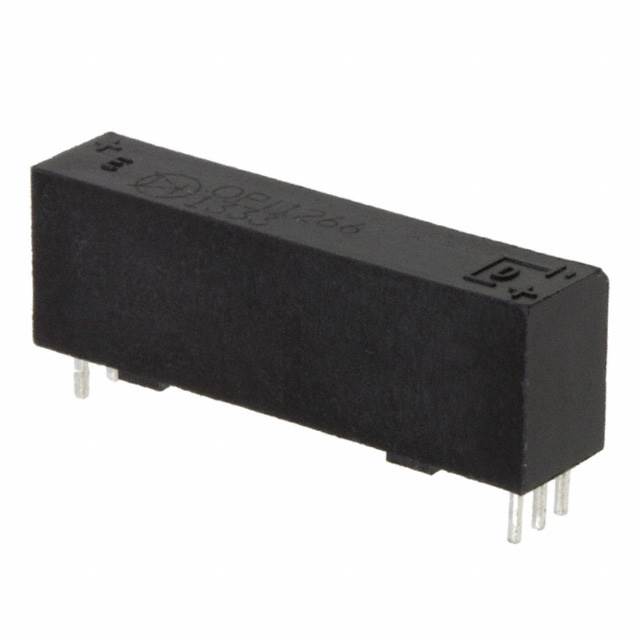

lmages are for reference only.OPI1268S
OPTOISO 20KV OPEN COLLECTOR
Datasheet6-DIP (1.100", 27.94mm), 5 Leads
96,920 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 2Mbps Open Collector 20000VDC 1 Channel CMTI
OPI1268S
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | TT Electronics/Optek Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 20000VDC |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 25 mA |
| Data Rate | 2Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 7V |
| Operating Temperature | -50°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (1.100", 27.94mm), 5 Leads |
| Supplier Device Package | - |
| Base Product Number | OPI1268 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | OPI1268 | OPI1268 | OPI1268S | OPI125 |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 16KV OPEN COLLECTOR | OPTOISO 16KV OPEN COLLECTOR | OPTOISO 20KV OPEN COLLECTOR | OPTOISO 15KV PUSH PULL |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
