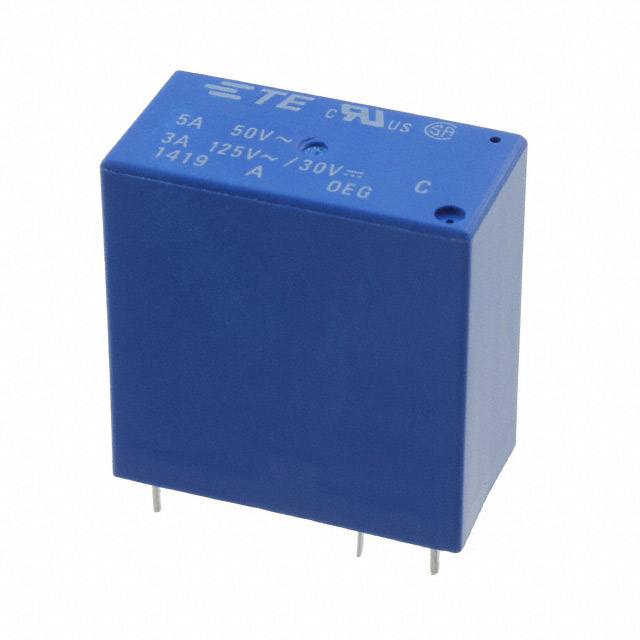

RELAY GEN PURPOSE DPST 3A 24V
Datasheet-
76,813 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
OSA-SH-224DM3,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OSA, OEG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 240VAC, 30VDC - Max |
| Load - Max Switching | 720VA, 90W |
| Coil Current | 22.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -30°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CQC, CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.1 kOhms |
| Base Product Number | OSA-SH |
| Product Attribute | |
|
|
|
| Part Number | OSA-SH-224DM3,000M | OSA-SH-224DM3M,000 | OSA-SH-224DM3M,000M | OSA-SH-224DM5,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPST 3A 24V | RELAY GEN PURPOSE DPST 5A 24V | RELAY GEN PURP | RELAY GEN PURPOSE DPST 5A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Bulk | Bulk | Bulk |
