OSD5-E
lmages are for reference only.OSD5-E
SENSOR PHOTODIODE 550NM 2.5 TO5
DatasheetTO-5 Variant, 2 Leads, Lens Top Metal Can
108,131 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Photodiode 550nm TO-5 Variant, 2 Leads, Lens Top Metal Can
OSD5-E
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | OSI Optoelectronics, Inc. |
| Series | E |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Wavelength | 550nm |
| Color - Enhanced | Blue |
| Spectral Range | 350nm ~ 850nm |
| Diode Type | - |
| Responsivity @ nm | - |
| Response Time | - |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
| Current - Dark (Typ) | 500pA |
| Active Area | 5mm² |
| Viewing Angle | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | TO-5 Variant, 2 Leads, Lens Top Metal Can |
| Base Product Number | OSD5 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

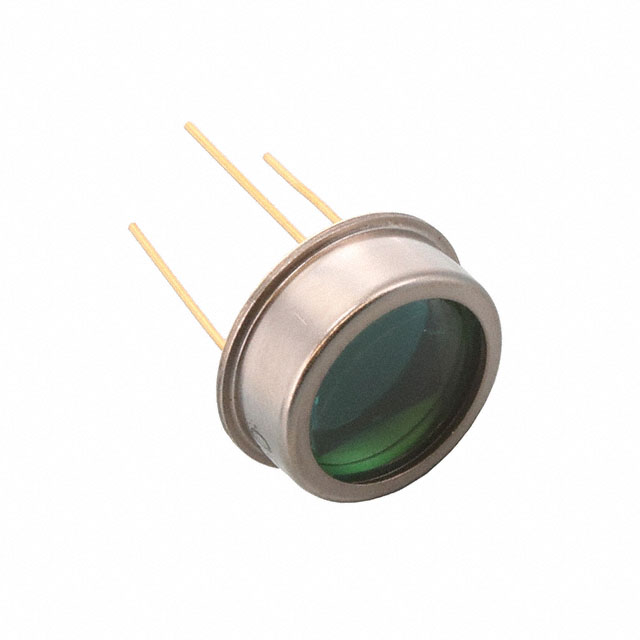

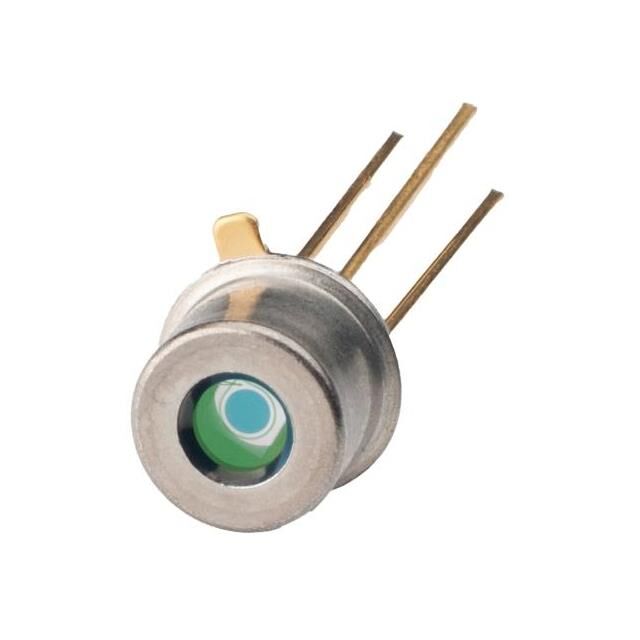

| Part Number | OSD1-E | OSD60-E | PDB-V102 | SFH 2440 L |
| Manufacturer | OSI Optoelectronics, Inc. | OSI Optoelectronics, Inc. | Advanced Photonix | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | SENSOR PHOTODIODE 550NM 1X1 TO18 | SENSOR PHOTODIODE 550NM TO233AA | SENSOR PHOTODIODE 950NM TO46-2 | SENSOR PHOTODIODE 620NM 2SMD GW |
| Series | E | E | - | Power TOPLED® |
| Packaging | Tray | Tray | Bulk | Tape & Reel (TR) |
