OSI5008-10.0M

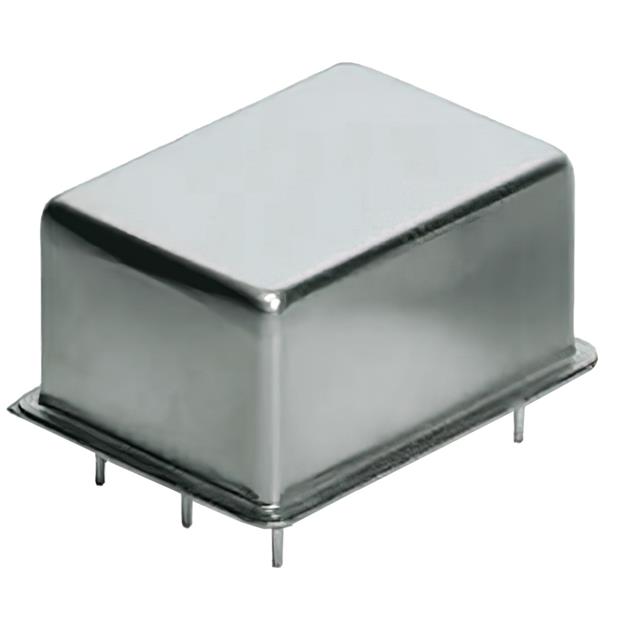

lmages are for reference only.OSI5008-10.0M
CRYSTAL OSC OCXO 10.0M SNWV
Datasheet6-DIP (1.000", 25.40mm), 5 Leads
53,494 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz OCXO LVTTL Oscillator 5V 6-DIP (1.000", 25.40mm), 5 Leads
OSI5008-10.0M
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Pletronics, Inc |
| Series | OSI5xxx-xx.xxM |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 10 MHz |
| Function | - |
| Output | LVTTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±10ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 850mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (1.000", 25.40mm), 5 Leads |
| Size / Dimension | 1.430" L x 1.070" W (36.32mm x 27.18mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | OSI5003-10.0M | OSI5004-10.0M | OSI5005-10.0M | OSI5006-10.0M |
| Manufacturer | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL OSC OCXO 10.0M LVTTL | CRYSTAL OSC OCXO 10.0M LVTTL | CRYSTAL OSC OCXO 10.0M LVTTL | CRYSTAL OSC OCXO 10.0M LVTTL |
| Series | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc | Pletronics, Inc |
| Packaging | Box | Box | Box | Box |
