OSOPTA2002DT1

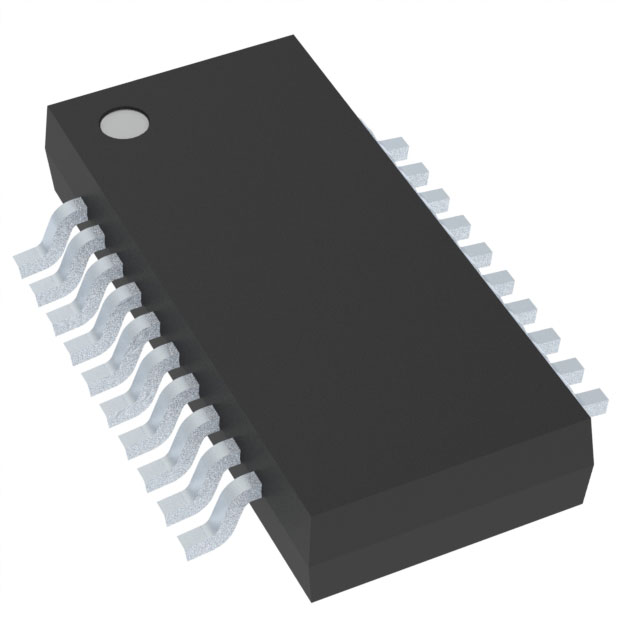

lmages are for reference only.OSOPTA2002DT1
RES ARRAY 10 RES 20K OHM 20SSOP
Datasheet20-SSOP (0.154", 3.90mm Width)
73,299 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20k Ohm ±0.5% 100mW Power Per Element Isolated 10 Resistor Network/Array ±25ppm/°C 20-SSOP (0.154", 3.90mm Width)
OSOPTA2002DT1
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Vishay Dale Thin Film |
| Series | OSOP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 20k |
| Tolerance | ±0.5% |
| Number of Resistors | 10 |
| Resistor Matching Ratio | ±0.1% |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Number of Pins | 20 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP |
| Size / Dimension | 0.344" L x 0.154" W (8.74mm x 3.91mm) |
| Height - Seated (Max) | 0.068" (1.73mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | OSOPTA2002AT1 | OSOPTA2002BT1 | OSOPTA2002CT1 | OSOPTA2002FT1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 10 RES 20K OHM 20SSOP | RES ARRAY 10 RES 20K OHM 20SSOP | RES ARRAY 10 RES 20K OHM 20SSOP | RES ARRAY 10 RES 20K OHM 20SSOP |
| Series | OSOP | OSOP | OSOP | OSOP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
