Product CatalogPart Number
OSTTZ030101
Manufacturer
On Shore Technology Inc.Description
TERM BLK 3POS SIDE ENTRY 5MM SMD
Datasheet
DatasheetPackage
-
In Stock
96,390 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
OSTTZ030101
OSTTZ030101
lmages are for reference only.Payment Methods
Delivery Services
3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Surface Mount
Quick Inquiry
OSTTZ030101
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | On Shore Technology Inc. |
| Series | OSTTZ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 3 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board |
| Current | 6 A |
| Voltage | 300 V |
| Wire Gauge | 14-30 AWG |
| Mounting Type | Surface Mount |
| Wire Termination | Screw - Rising Cage Clamp |
| Features | Board Guide, Cover |
| Color | Black |
| Operating Temperature | -45°C ~ 130°C |
| Housing Material | Thermoplastic |
| Contact Material - Plating | Brass |
| Clamp Material - Plating | Brass |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M3 |
| Base Product Number | OSTTZ03 |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | OSTTZ020101 | OSTTZ040101 | OSTTZ050100 | OSTTZ050101 |
| Manufacturer | On Shore Technology Inc. | On Shore Technology Inc. | On Shore Technology Inc. | On Shore Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TERM BLK 2POS SIDE ENTRY 5MM SMD | TERM BLK 4POS SIDE ENTRY 5MM SMD | TERM BLK 5POS SIDE ENTRY 5MM SMD | TERM BLK 5POS SIDE ENTRY 5MM SMD |
| Series | OSTTZ | OSTTZ | OSTTZ | OSTTZ |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
OSTTZ020101
On Shore Technology Inc.
OSTTZ040101
On Shore Technology Inc.

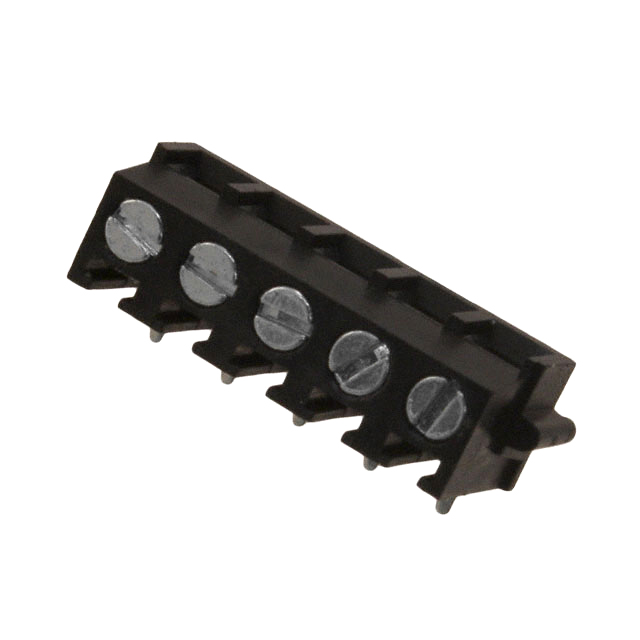

OSTTZ050100
